Yamato Protec YDA-75CG With B-1 Box Mobile Powder Fire Extinguishing System Flat Indicator Light

Manufacturer: Yamato Protec Corporation
Model: YDA-75CG With B-1 Box

Application

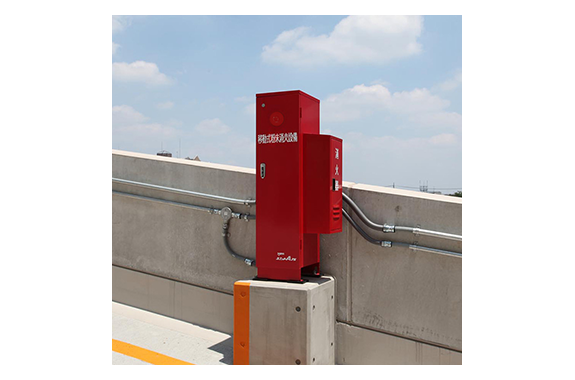

The “Unit A” series, which compactly combines excellent functionality, is a fire extinguishing system that is easy to use with a space-saving, labor-saving design. It is especially well-suited for parking lots and is widely installed in such locations. It is ideal for indoor and outdoor parking lots, auto repair shops, aircraft hangars, electrical rooms, and other places where there is a risk of oil or electrical fires. It comes with a box for storing the fire extinguisher.

Product name	YDA-75CG (with fire extinguisher box)
Certification Number	C-493
Radiation	28 kg/min
Effective radiation time	Approximately 64 seconds
Radiation distance	8-10m
Total mass	Approximately 75kg

*The location of the fire extinguisher box may vary depending on the site.
*The fire extinguisher box requires on-site installation.

Features

Easier Maintenance and Installation
The lightweight, compact storage box features a redesigned layout. This new configuration makes winding the hose much easier.
Environmental Recycling Support
Our company properly sorts, processes, and 100% recycles used fire extinguishers. We use recycled ABC powder to support a circular economy.
Safe and Secure Design
A flat handle prevents doors from opening during strong wind vibrations. Lowering the box’s center of gravity further improves safety.
Efficient Firefighting Performance
A coupler-shaped nozzle tip connects directly to underground pit ports. This special feature enables highly efficient firefighting during emergencies.

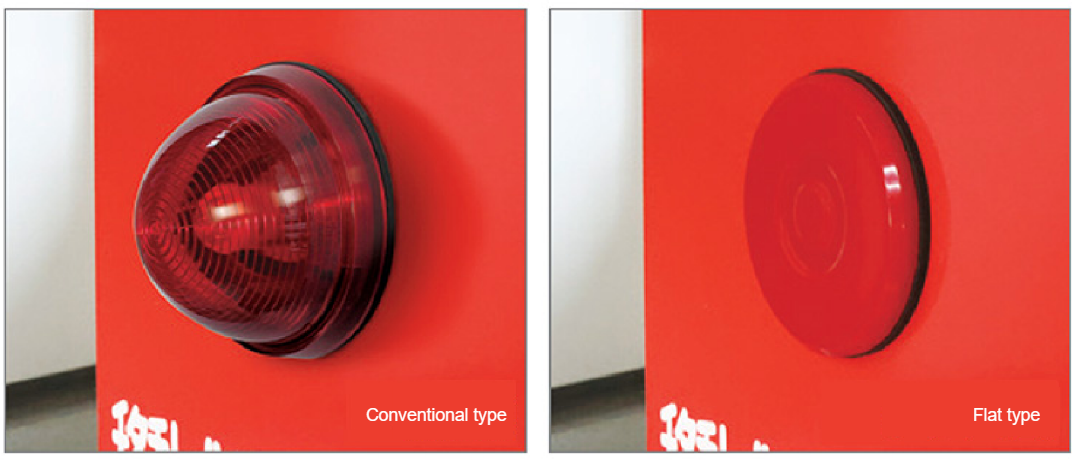

Flat Indicator Light Adoption
A new slim indicator light provides a clean, space-saving look. This patent-pending design significantly improves overall visibility.
