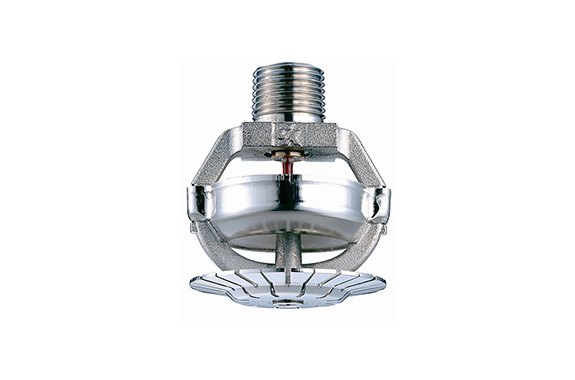

Yamato Protec YFH-C35P-68 Closed Type Foam Solution Head
Manufacturer: Yamato Protec Corporation
Model: YFH-C35P-68
Application
This system combines three separate components into a single closed-type foam solution head.
| Product name | YFH-C35P-68 |
|---|---|
| Model number | Recognition Station No. 26-1-1 |
| Mounting direction | Downward |
| Operating pressure | 0.35 MPa to 0.80 MPa |
| Radiation | 36 L/min to 51.3 L/min |
| Mounting height | 1.8m to 8.0m |
| Effective radiation range | r2.1m |
| Effective detection range | r2.1m |
| Installation interval | 3m pitch |
| Type of heat sensor and operating temperature | Valve type, 68℃ |
| type | 1 type |
| Foam fire extinguishing agent used | Bubbles No. 19-26 |
| mass | Approximately 140g |
