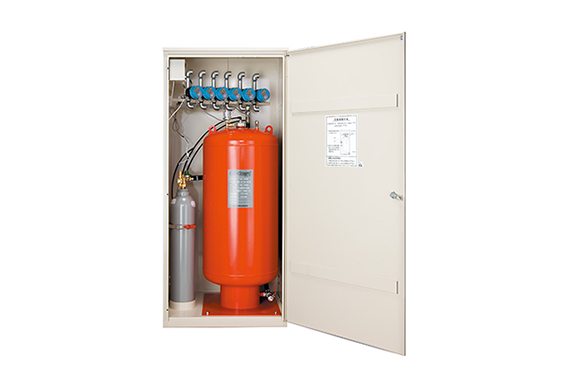

Yamato Protec YGS-180NP GS Guard

Manufacturer: Yamato Protec Corporation
Model:YGS-180NP

Application

This fixed foam fire extinguishing system [horizontal discharge type] for self-service gas stations reflects the needs of the times. The use of dedicated resin piping* significantly increases the flexibility and speed of piping work. The new design simplifies installation and reduces costs. Please feel free to contact us when planning a “self-service gas station.” *YP [GS Guard] dedicated resin pipe = “GS Guard Yukalon Excel Pipe”

Foam fire extinguishing agent storage container
Product name	YGS-180NP GS Guard
Name of fire extinguishing agent	Aqueous film-forming foam 3% (-10℃ to +30℃) fire extinguishing agent (Model numbers: Foam No. 19 to 26)
Pressurized containers, etc.	Nitrogen gas pressurized system (capacity 13.4L)
Radiation pressure range	Lower limit: 0.25MPa Upper limit: 0.50MPa
Radiation range	Lower limit: 11.0 L/min Upper limit: 18.8 L/min
Radiation distribution	The distribution diagrams for radiation pressure and the upper and lower limits of radiation dose are shown in a separate figure.
Expansion ratio range	Lower limit: 2x Upper limit: 6x
Minimum radiation time	2 minutes 30 seconds
capacity	7L
Material	SUS304
Storage containers for antifreeze, etc.
capacity	173L
Material	SS400
outlet
shape	Oval opening
Material	C3604B
Selector valve
Switching method	Electric
Maximum number	6 pieces (three-way valve)
Piping
Material	SGP, cross-linked polyethylene pipe
Caliber	20A, 25A
Electrical wiring
Types of wiring	The conductor must be 0.5 mm or larger and conform to JIS C3307 standards.
Protection method	Resin cable duct (inside storage box)
Exterior
Material	SECC
Structure Overview	1.2mm thick box-shaped plate (tank is fixed to the base)
Fixing method	Anchor bolts M10 x 4
ground terminal
Material	copper alloy
structure	M5 screws

Features

Simultaneous two-zone discharge halves the island pipes, greatly reducing conventional piping costs.
Resin piping increases installation flexibility and speed while lowering overall costs.
The horizontal discharge system maximizes fire extinguishing efficiency with minimal volume. It requires less agent and uses a compact container.
The Japan Hazardous Materials Safety Technology Association approved this product. It holds Type Approval YP-E-02 and Patent 3814414.
Operators can change the activated foam nozzle with one single action. The nozzle releases the agent within 30 seconds.
Technicians can route piping from the right or rear for versatile installation. Finally, the product is entirely PFOS-free.
