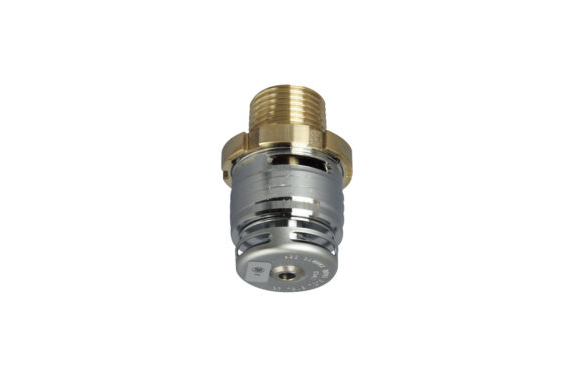

Yamato Protec YKQRII-98 Sprinkler Head
Manufacturer: Yamato Protec Corporation
Model: YKQRII-98
Application
This head distributes heat in a circular pattern around an axis with an operating temperature of 98°.
| Model | YKQRⅡ-98 |
|---|---|
| Model number | No. 25-5 |
| Sensitivity Classification | 1 type |
| Operating temperature | 98℃ |
| Effective watering radius | r2.6 |
| Mounting direction | Downward |
| Color display | white |
| Maximum condensation temperature | 39℃ or higher, but less than 64℃ |
Overview
This is a downward-facing, embedded type head from the standard head series, featuring high sensitivity (“sensitivity type 1, effective watering radius of 2.6m”) performance.
