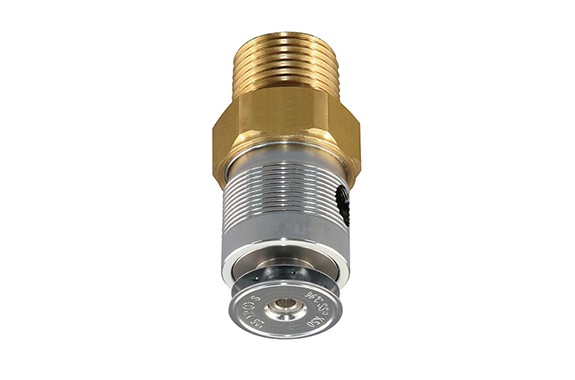

| Model | YSFP26-50-96 |
|---|---|
| Model number | Su No. 2025-4 |
| Sensitivity Classification | 1 type |
| Operating temperature | 96℃ |
| flow constant | K50 |
| Mounting direction | Downward |
| Color display | white |
| Maximum condensation temperature | 39℃ or higher, but less than 64℃ |
| Protection range | r2.6m or less and 13m² or less (small plot) |
Features
The eight-point ball support structure distributes the load at the fixing points, improving impact resistance.
By using a high-heat-resistant grade rubber O-ring, durability is enhanced and water leakage is prevented.
The diameter of the frame (the part that protrudes from the ceiling) is only 24mm. The exposed part has sufficient strength and will not deform easily.
This is a small-area spray head with the following specifications: “Sensitivity type 1, spray radius of 2.6m or less, and protected area of 13m² or less.”
