Manufacturer: Yamato Protec Corporation
Model: YWSG30 Type

Application

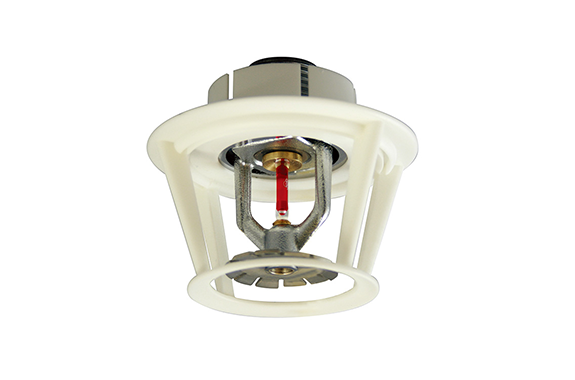

This component serves as a closed-type sprinkler head for a water supply-connected sprinkler system. It uses a glass valve with an expandable liquid sealed inside the heat-sensing part. When it detects the heat of a fire, the liquid inside the glass valve expands, and when it reaches the temperature, the glass valve breaks, and water spraying starts quickly.

Model	YWSG30 type
Model number	No. 23-1
Japan Fisheries Cooperative Association Certification Registration Number	Z-363
Mounting direction	Downward
Displayed water discharge pressure	0.1 MPa – 30 L/min
Minimum discharge pressure	0.025 MPa – 15 L/min
Sensitivity type	1 type
Operating temperature	68℃
Mounting screws	R1/2
Protection range	r 2.6m or less, and 13m² or less
Maximum condensation temperature	Below 39℃
