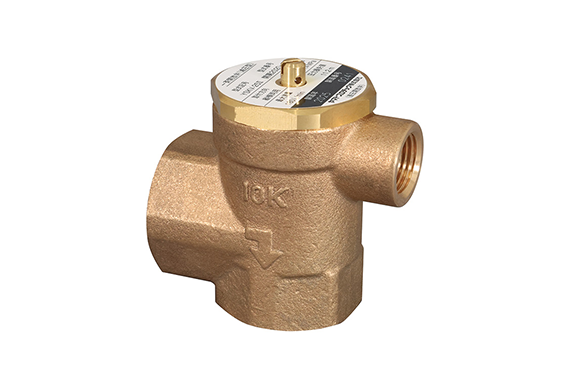

Yamato Protec YSKV-25II Simultaneous Release Valve
Manufacturer: Yamato Protec Corporation
Model: YSKV-25II
Application
Technicians install these devices together with a sensing head and an open-type head within sprinkler and closed-type foam fire extinguishing systems, specifically targeting locations where ducts or shelves obstruct water distribution.
| Product name | YSKV-25II |
|---|---|
| Model number | Kai No. 2020-2 |
| Mounting direction | Can be used vertically or horizontally |
| Operating pressure range | 0.15 MPa to 1.4 MPa |
| maximum flow rate | 180 L/min |
| Pressure loss at maximum flow rate (equivalent to straight pipe length) | 0.14 MPa (11.2 m) |
| mass | Approximately 950g |
