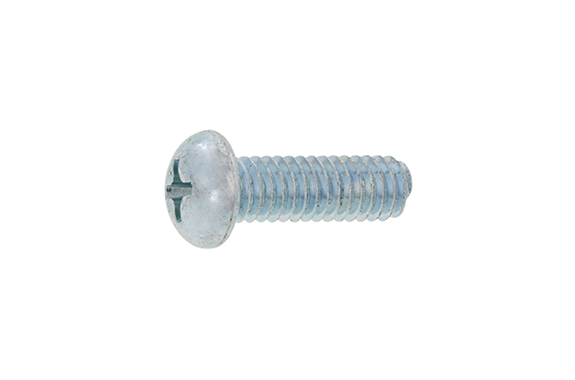

00-0015 (+) JIS Round Head Screw
Model: 00-0015
Dia range:M3～M5
Length range:4～45
Iron (or standard), brass, Stainless steel (303, 304,…).
Plain, Zinc blue cr6+, Chrome, GB (brown bronze), BK (SUS black oxide), SABINAI JYAN.

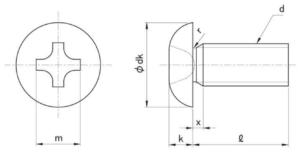

| Nominal Diameter (d) | Pitch (P) | Cross Slot Number | dk | K | m | q (Cross Slot Depth) | |||
|---|---|---|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | Reference | Max | Min | |||
| M3 | 0.6 | 2 | 5.5 | 0 -0.5 | 2 | ±0.15 | 3.5 | 1.33 | 0.76 |
| M4 | 0.75 | 7.0 | 2.6 | 4.1 | 193 | 1.35 | |||
| M5 | 0.9 | 9.0 | 0 -0.6 | 3.4 | 4.8 | 2.63 | 2.04 | ||
