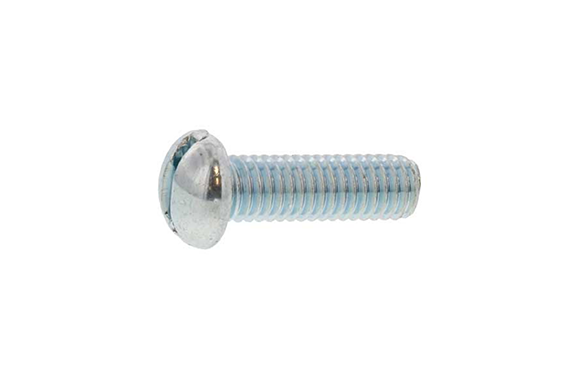

00-0105 (-) Round Head Screw
Model: 00-0105
Dia range:M4～M16
Length range:6～100
Iron (or standard), brass, Stainless steel (303, 304,…).
Plain, Zinc blue cr6+, Zinc yellow cr6+, Trivalent zinc cr+3 color white,…
(Unit: mm)

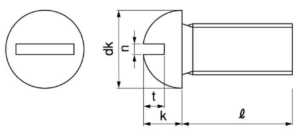

| Nominal Diameter (d) | Pitch (P) | dk | k | n | t |
|---|---|---|---|---|---|
| Standard Dimension | Standard Dimension | Standard Dimension | Standard Dimension | ||
| ※M4 | 0.7 | 7.0 | 2.6 | 1.0 | 1.6 |
| M6 | 1.0 | 10.5 | 4.0 | 1.2 | 2.5 |
| M8 | 1.25 | 14 | 5.4 | 1.6 | 3.3 |
| M10 | 1.5 | 16 | 7.0 | 2.0 | 3.5 |
| M12 | 1.75 | 19 | 8.0 | 2.3 | 4.0 |
| M16 | 2.0 | 26 | 11.0 | 3.0 | 5.0 |
※M4 is only available in stainless steel.
