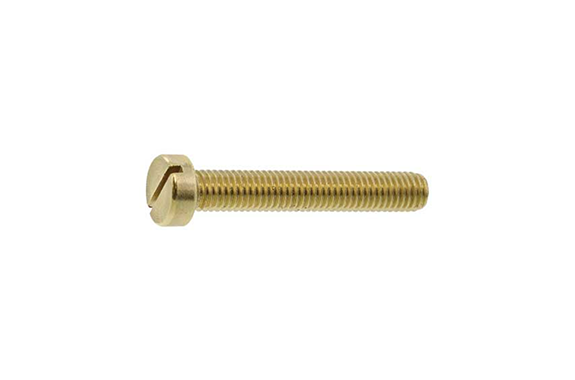

00-010C (-) Cylinder Head Screw
Model: 00-010C
Dia range:M1～M8
Length range:2～60
Iron (or standard), brass, Stainless steel (303, 304,…).
Plain, Zinc blue cr6+, Zinc yellow cr6+, Trivalent zinc cr+3 color white,…

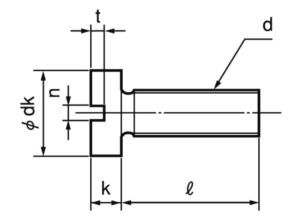

| Nominal Diameter (d) | Pitch (P) | dk | k | n | t | ||
|---|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | Reference | Reference | ||
| M1* | 0.25 | 2.0 | 0 -0.3 | 0.65 | ±0.1 | 0.32 | 0.3 |
| M12* | 0.25 | 2.3 | 0.8 | 0.32 | 0.4 | ||
| M1.4* | 0.3 | 2.6 | 0 -0.4 | 0.9 | 0.32 | 0.5 | |
| M1.6* | 0.35 | 3.0 | 1.0 | 0.4 | 0.55 | ||
| M2 | 0.4 | 3.5 | 1.3 | 0.6 | 0.7 | ||
| M2.5 | 0.45 | 4.5 | 1.7 | 0.8 | 0.9 | ||
| M2.6 | 0.45 | 4.5 | 1.7 | 0.8 | 0.9 | ||
| M3 | 0.5 | 5.5 | 0 -0.5 | 2.0 | ±0.15 | 0.8 | 1.1 |
| M4 | 0.7 | 7.0 | 2.6 | 1.0 | 1.4 | ||
| M5 | 0.8 | 9.0 | 0 -0.6 | 3.3 | 1.2 | 1.8 | |
| M6 | 1.0 | 10.5 | 0 -0.7 | 3.9 | ±0.2 | 1.2 | 2.1 |
| M8 | 1.25 | 14.0 | 0 -0.8 | 5.2 | 1.6 | 2.8 | |
* is only available in stainless steel.
