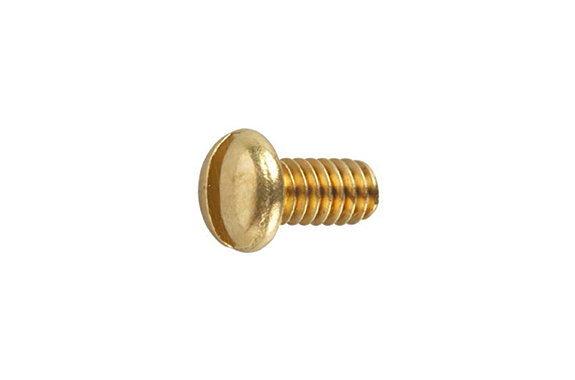

00-0115 (-) JIS Round Head Screw
Model: 00-0115
Dia range:M3～M5
Length range:6～30
Brass.
Plain, Chrome.

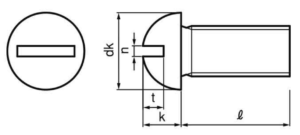

| Nominal Diameter | Pitch | dk | K | n | t | ||||
|---|---|---|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | Standard Dimension | Tolerance | Standard Dimension | Tolerance | ||
| M3 | 0.6 | 5.5 | 0 -0.5 | 2 | ±0.15 | 0.8 | +0.15 -0 | 1.2 | ±0.2 |
| M4 | 0.75 | 7 | 2.6 | 1.0 | 1.6 | ±0.25 | |||
| M5 | 0.9 | 9 | 0 -0.6 | 3.4 | 1.2 | +0.2 -0 | 2.1 | ±0.3 | |
