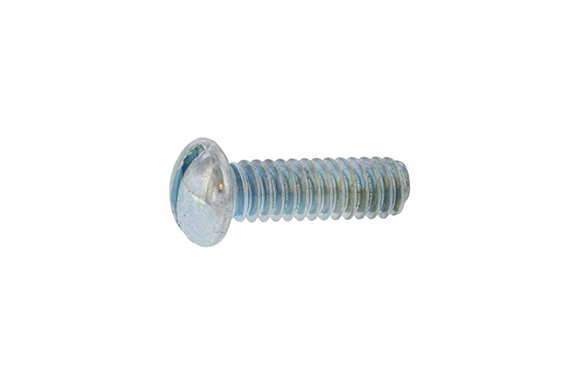

00-0125 (-) Round Head Whitworth
Model: 00-0125
Dia range:1/8～1/2
Length range:6～150
Iron (or standard), brass, Stainless steel (303, 304,…).
Plain, Zinc blue cr6+, Zinc yellow cr6+, Trivalent zinc cr+3 color white,…

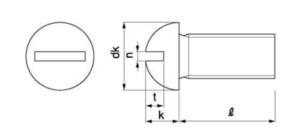

| Nominal Diameter (d) | Thread Pitch Count | dk | k | n | t | ||||
|---|---|---|---|---|---|---|---|---|---|
| Max | Min | Max | Min | Max | Min | Max | Min | ||
| W 1/8 | 40 | 5.65 | 5.15 | 2.35 | 2.05 | 0.90 | 0.70 | 1.38 | 1.02 |
| W 5/32 | 32 | 7.08 | 6.52 | 2.78 | 2.42 | 1.01 | 0.81 | 1.60 | 1.20 |
| W 3/16 | 24 | 8.63 | 7.97 | 3.38 | 3.02 | 1.26 | 1.04 | 2.04 | 1.56 |
| W 1/4 | 20 | 11.18 | 10.42 | 4.38 | 4.02 | 1.58 | 1.30 | 2.60 | 2.00 |
| W 5/16 | 18 | 14.02 | 13.18 | 5.43 | 4.97 | 1.77 | 1.49 | 3.32 | 2.48 |
| W 3/8 | 16 | 16.48 | 15.52 | 6.44 | 5.96 | 2.00 | 1.66 | 3.38 | 2.92 |
| W 1/2 | 12 | 22.08 | 21.12 | 8.45 | 7.95 | 2.76 | 2.42 | 4.98 | 4.02 |
