00-0502 (+) Oval Head (50 Thread)
Model: 00-0502
Dia range:M4～M4
Length range:65～70
Iron (or standard).
Plain, Zinc blue cr6+, Trivalent zinc cr+3 color white, Nickel.

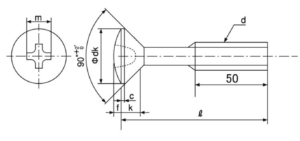

| Thread Nominal Diameter (d) | Pitch | Cross Slot Number | dk | K | C Approx. | f Approx. | k+f | m Reference | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | Standard Dimension | Tolerance | ||||||
| M4 | 0.7 | 2 | 8 | 0 -0.5 | 2.3 | 0 -0.3 | 0.3 | 0.9 | 3.2 | 0 -0.5 | 4.7 |
