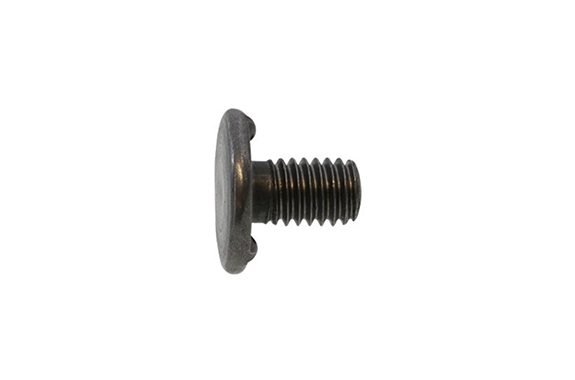

00-0820 Weld BT (JIS)
Model: 00-0820
Dia range:M6～M8
Length range:10～50
Iron (or standard).
Plain, Zinc blue cr6+, Zinc yellow cr6+, Trivalent zinc cr+3 color white,…

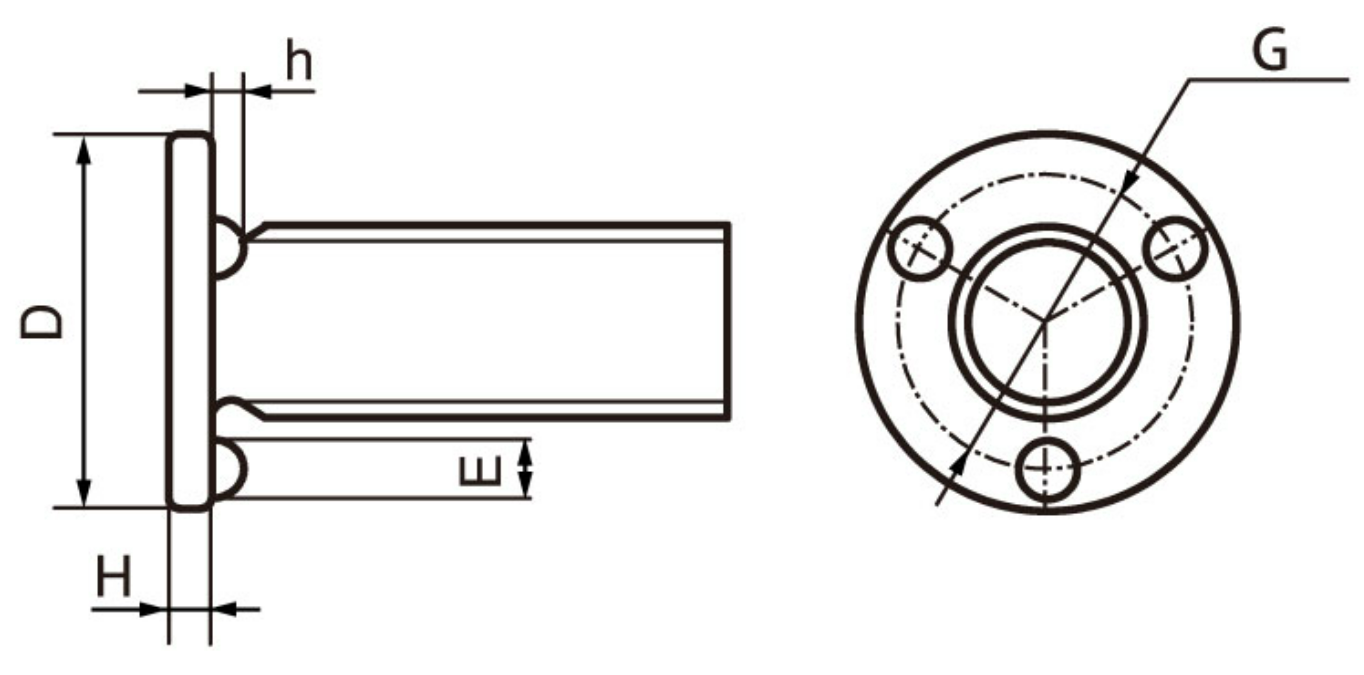

| Screw Nominal Diameter | Number of Protrusions | Head Diameter D | Head Height H | Weld Protrusion Section | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | E | h | G | ||||
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | Maximum | ||||||
| M6 | 3 | 14 | ±0.4 | 2 | ±0.2 | 2.5 | ±0.25 | 0.8 | ±0.1 | 11.5 |
| M8 | 3 | 18 | 2.5 | 3 | 0.8 | 15 | ||||
