SUNCO

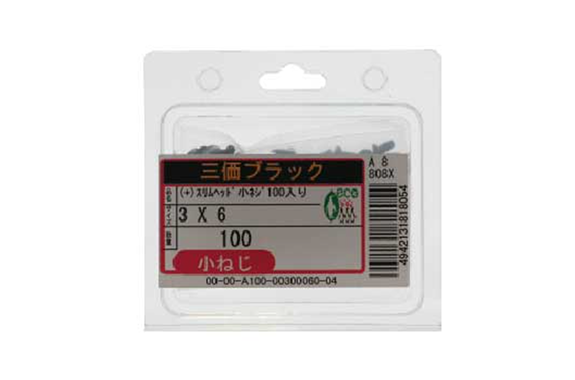

00-A100 (+) Slim Head (Pack)
Model: 00-A100
Dia range:M2～M6
Length range:3～30
Iron (or standard).
Trivalent zinc cr3+ color white, Trivalent zinc cr3+ color black, Nickel, Non-Chrome White.

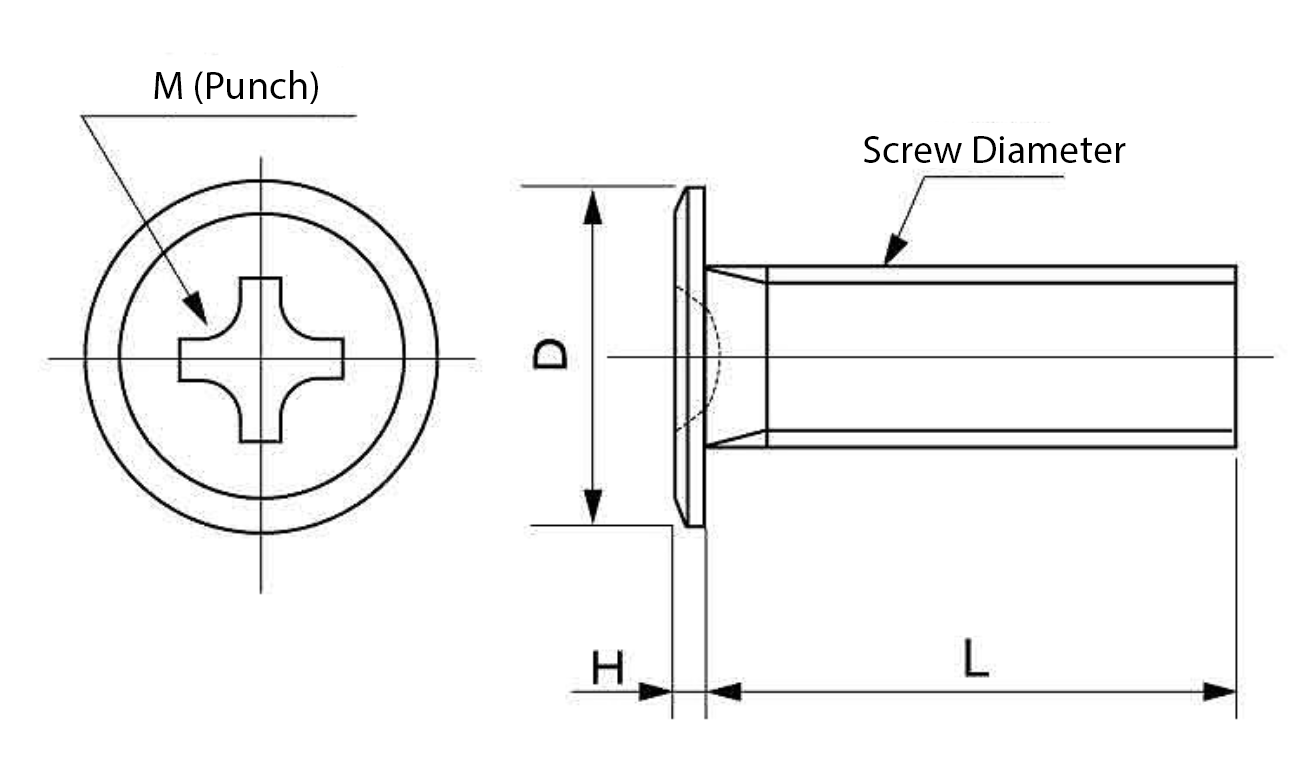

| Screw Designation (d) | Standard Dimension (D) | Standard Dimension (H) | Cross Hole Number | ||
|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | ||
| M2 | 4.0 | 0 -0.5 | 0.5 | ±0.1 | 0 |
| M2.6 | 5.0 | 0 -0.5 | 0.6 | ±0.1 | 1 |
| M3 | 6.0 | 0 -0.5 | 0.8 | ±0.1 | 1 |
| M4 | 8.0 | 0 -0.5 | 0.9 | ±0.1 | 2 |
| M5 | 9.0 | 0 -0.5 | 1.0 | ±0.1 | 2 |
| M6 | 10.0 | 0 -0.5 | 1.2 | ±0.1 | 2 |
