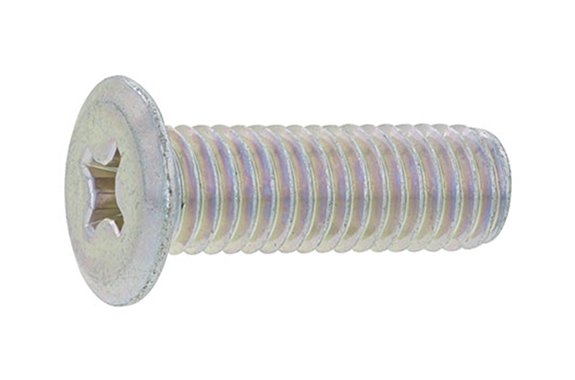

00-A300 (+) Slim Head
Model: 00-A300
Dia range:M2～M8
Length range:2～70
Iron (or standard), Brass, Stainless Steel (303, 304, XM7,…), Aluminum (AL), SUS403.
Plain, Zinc yellow cr6+, Zinc blue cr6+, Trivalent zinc cr+3 color white, Trivalent zinc cr+3 color black,…
Unit: mm

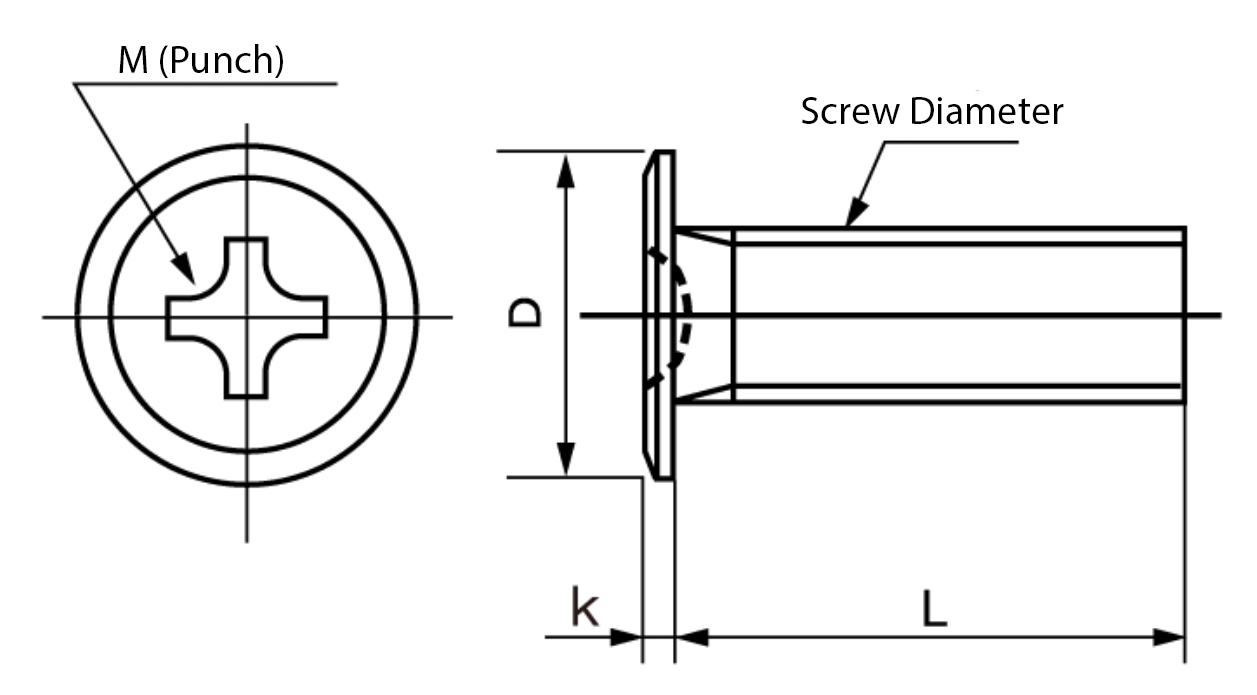

| Screw Designation | Cross Hole Number (M) | Standard Dimension (D) | Standard Dimension (k) | ||
|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | ||
| M2 | 0 | 4.0 | 0 -0.5 | 0.5 | ±0.1 |
| M2.5 | 1 | 5.0 | 0 -0.5 | 0.6 | ±0.1 |
| M2.6 | 1 | 5.0 | 0 -0.5 | 0.6 | ±0.1 |
| M3 | 1 | 6.0 | 0 -0.5 | 0.8 | ±0.1 |
| M4 | 2 | 8.0 | 0 -0.5 | 0.9 | ±0.1 |
| M5 | 2 | 9.0 | 0 -0.5 | 1.0 | ±0.1 |
| M6 | 2 | 10.0 | 0 -0.5 | 1.2 | ±0.1 |
| M8 | 3 | 14.0 | 0 -0.7 | Steel 1.5 SUS 2.0 | ±0.15 |
