SUNCO

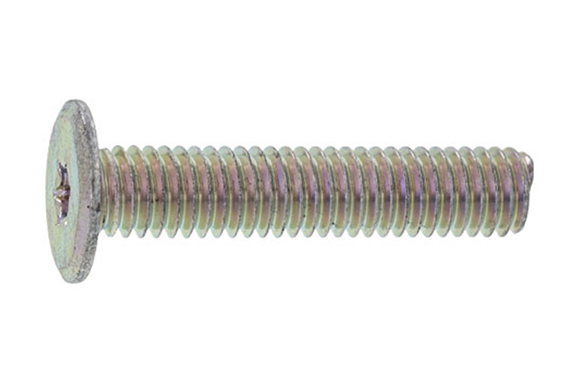

00-A40 TRX Slim Head
Model: 00-A40
Dia range:M2～M8
Length range:2～50
Iron (or standard), Brass, Stainless Steel (303, 304, XM7,…).
Plain, Trivalent zinc cr3+ color white, Trivalent zinc cr3+ color black, Nickel,…

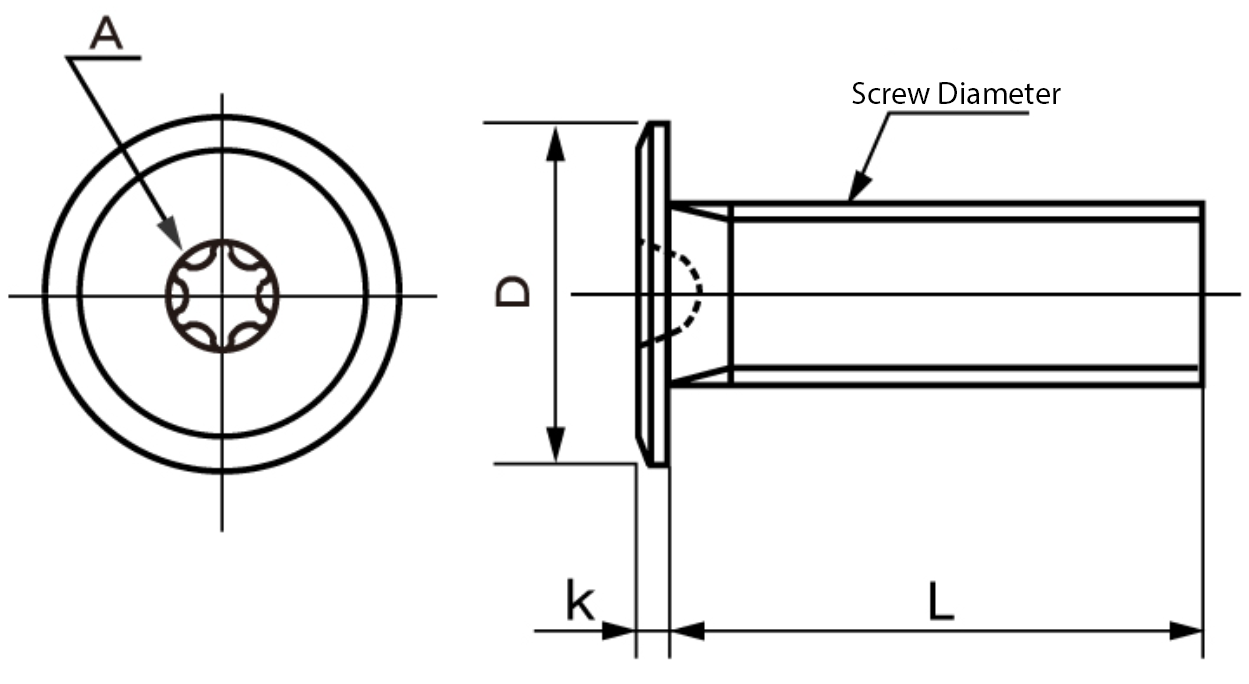

| Screw Designation (d) | Head Diameter (D) | Standard Dimension (k) | Drive Size | ||
|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | ||
| M2 | 4.0 | 0 -0.5 | 0.5 | ±0.1 | T4 |
| M2.6 | 6.0 | 0 -0.5 | 0.6 | ±0.1 | T5 |
| M3 | 7.0 | 0 -0.5 | 0.8 | ±0.1 | T6 |
| M4 | 8.0 | 0 -0.5 | 0.9 | ±0.1 | T8 |
| M5 | 9.0 | 0 -0.5 | 1.0 | ±0.1 | T10 |
| M6 | 12.0 | 0 -0.5 | 1.2 | ±0.1 | T20 |
| M8 | 14.0 | 0 -0.5 | 1.5 | ±0.15 | T25 |
M8 is made of steel only
