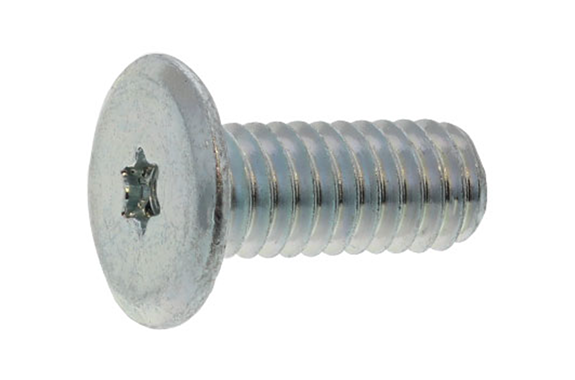

00-AH00 Intrtorque Screw (Slim Head)
Model: 00-AH00
Dia range:M3～M4
Length range:3～12
Iron (or standard).
Trivalent zinc cr+3 color white, Trivalent zinc cr+3 color black, Nickel.

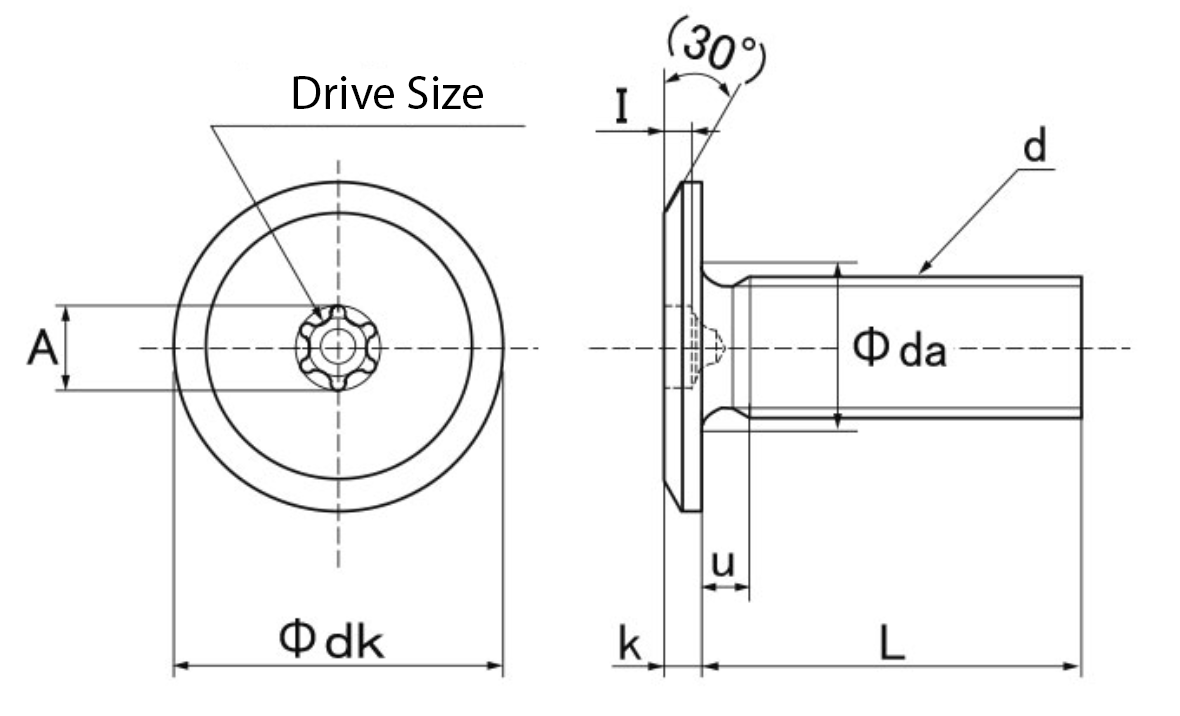

| Thread Nominal (d) | Pitch | Drive Size | A | φdk | k | φda | l | u | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Reference | Standard Dimensions | Tolerance | Standard Dimensions | Tolerance | Max | Max | Min | Max | |||
| M3 | 0.5 | IT6 | 1.75 | 7.0 | +0 -0.5 | 0.8 | ±0.1 | 3.6 | 0.5 | 0.4 | 1.0 |
| M4 | 0.7 | IT8 | 2.39 | 8.0 | +0 -0.5 | 0.9 | ±0.1 | 4.7 | 0.7 | 0.6 | 1.4 |
