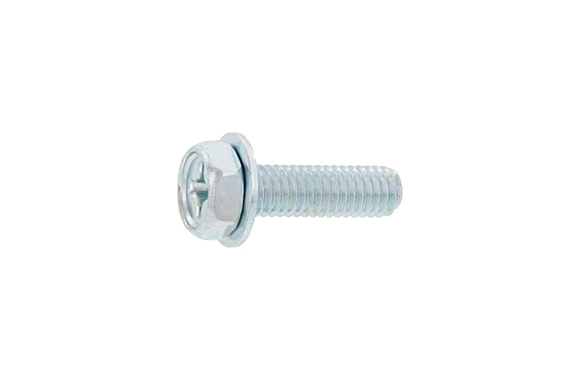

10-0101 (+) Upset P=1
Model: 10-0101
Dia range:M3～M10
Length range:6～70
Iron (or standard), Stainless steel (303, 304,…).
Plain, Zinc blue cr6+, Zinc yellow cr6+, Trivalent zinc cr+3 color white,…
(Unit: mm)

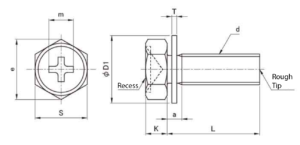

| Nominal Diameter (d) | K | s | e Approx. | Cross Recess | Flat Washer D1 × T | a （Max Value） | |||
|---|---|---|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | Number | m（Reference） | ||||
| M3 | 2 | ±0.1 | 5.5 | 0 -0.2 | 6.4 | 2 | 3.5 | 8 X 0.5 | 1.5 |
| M4 | 2.8 | 7 | 8.1 | 2 | 4 | 10 X 0.8 | 2.3 | ||
| M5 | 3.5 | ±0.15 | 8 | 9.2 | 2 | 4.8 | 12 X 0.8 | 2.7 | |
| M6 | 4 | 10 | 11.5 | 3 | 6.2 | 13 X 1.0 | 3.7 | ||
| M8 | 5.5 | 13 | 0 -0.25 | 15 | 3 | 7.2 | 18 X 1.6 | 4.2 | |
| M10 | 7 | ±0.2 | 17 | 19.6 | 4 | 9.25 | 22 X 1.6 | 5.2 | |
