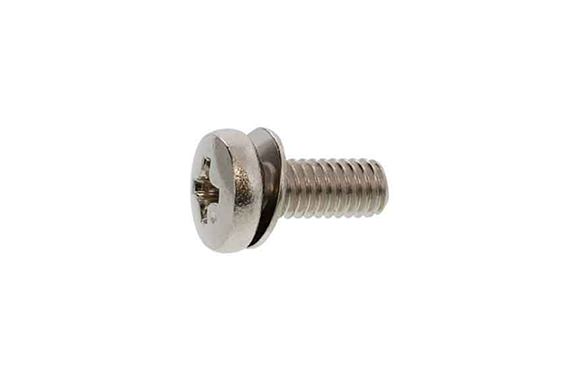

10-0407 (+) Bind Head PK=1
Model: 10-0407
dia range:M3～M5
Length range:6～10
Iron (or standard).
Plain, Zinc blue cr6+, Zinc yellow cr6+, Trivalent zinc cr+3 color white,…
| Nominal Diameter | dk | k+f | Cross Slot | Flat Washer D1 × T | a (Max Value) | |||
|---|---|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | Number | m (Reference) | |||
| M3 | 6.3 | 0 -0.5 | 1.9 | ±0.15 | 2 | 3.7 | 6 × 0.5 | 1.5 |
| M4 | 8.3 | 0 -0.5 | 2.5 | ±0.2 | 2 | 4.3 | 8 × 0.5 | 2.3 |
