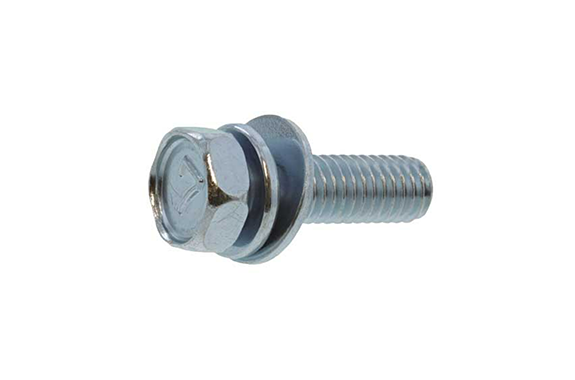

10-70S3 (7) Mark Upset SP=3
Model: 10-70S3
Dia range:M6～M6
Length range:12～20
Iron (or standard).
Zinc yellow cr6+, Trivalent zinc cr+3 color white.
Unit: mm

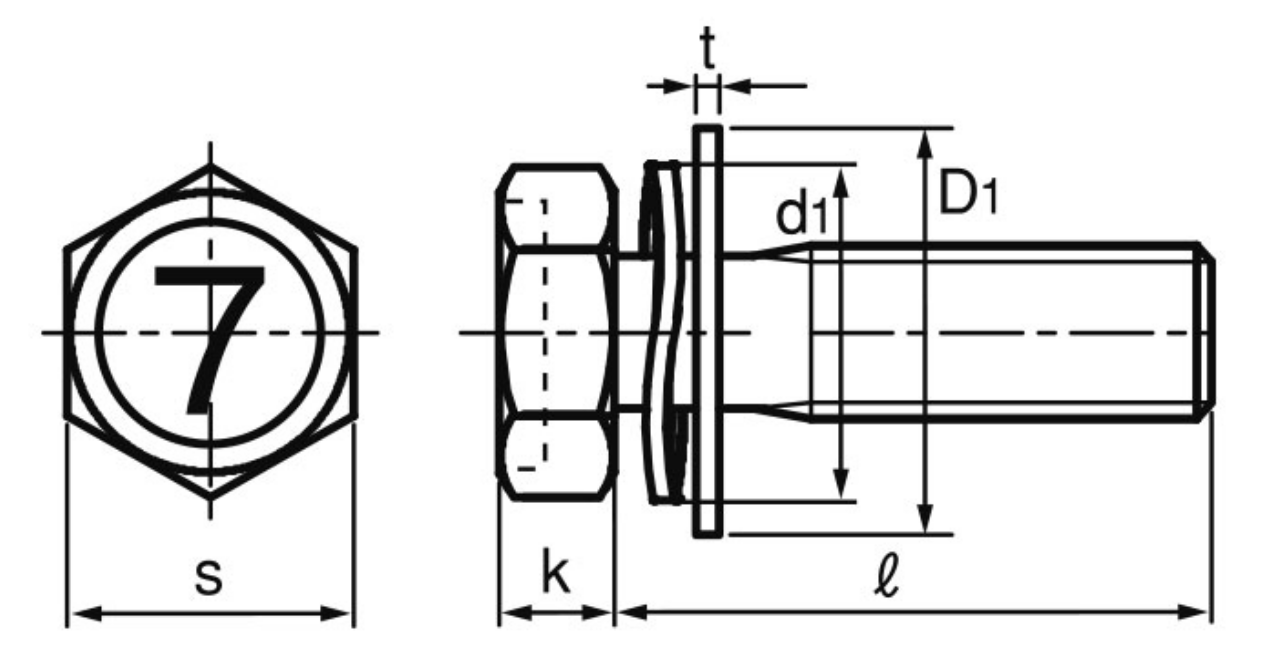

| Thread Nominal (d) | K | S | Flat Washer D1 × T | Wave Spring Washer d1 (Max) | ||
|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | |||
| M6 | 4 | ±0.15 | 10 | 0 -0.2 | 13X1.0 | 11.2 |
