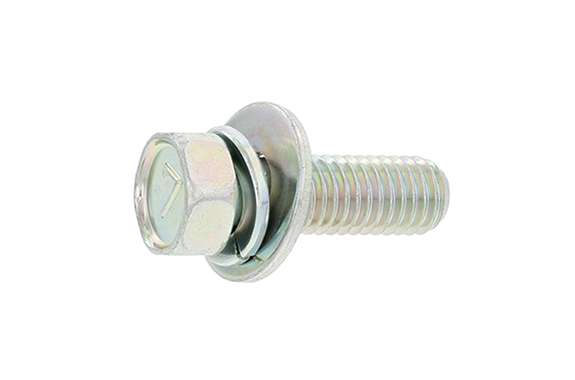

10-75S3 (7) Mark Small Upset SP=3
Model: 10-75S3
Dia range:M8～M8
Length range:20～30
Iron (or standard).
Zinc yellow cr6+, Trivalent zinc cr+3 color white.
Unit: mm

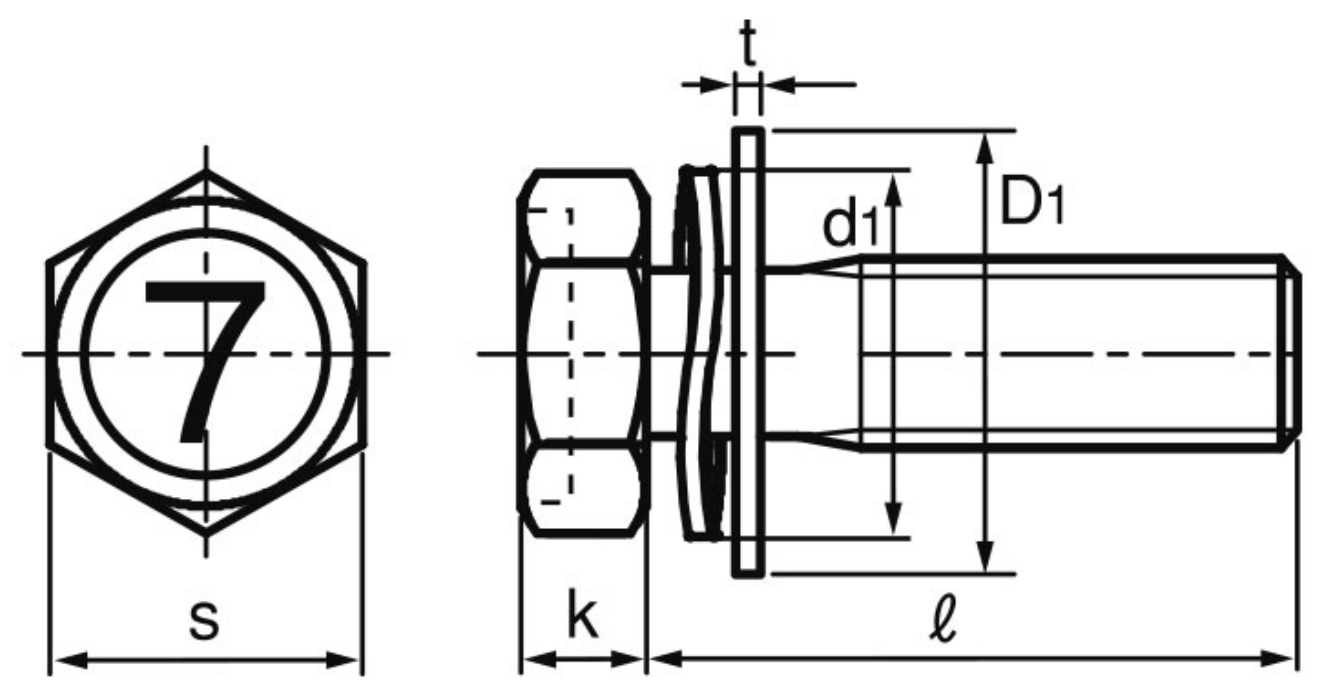

| Thread Nominal (d) | K | S | Flat Washer D1×T | Waved Spring Washer d1 (Maximum Size) | ||
|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | |||
| M8 | 5.5 | ±0.15 | 12 | 0 -0.25 | 18X1.6 | 14.1 |
