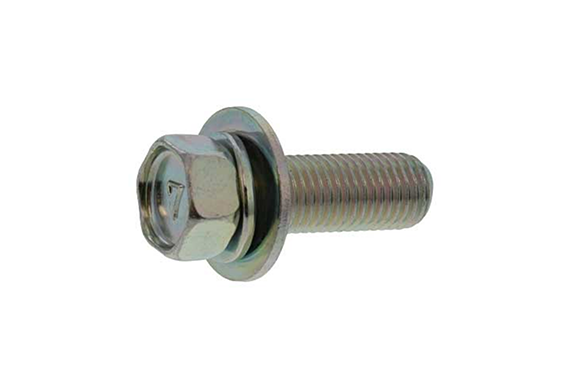

10-76S3 (7) Small Upset SP=3 Fine
Model: 10-76S3
Dia range:M10～M10
Length range:25～35
Iron (or standard).
Zinc yellow cr6+, Trivalent zinc cr+3 color white, Trivalent zinc cr+3 color black.
Unit: mm

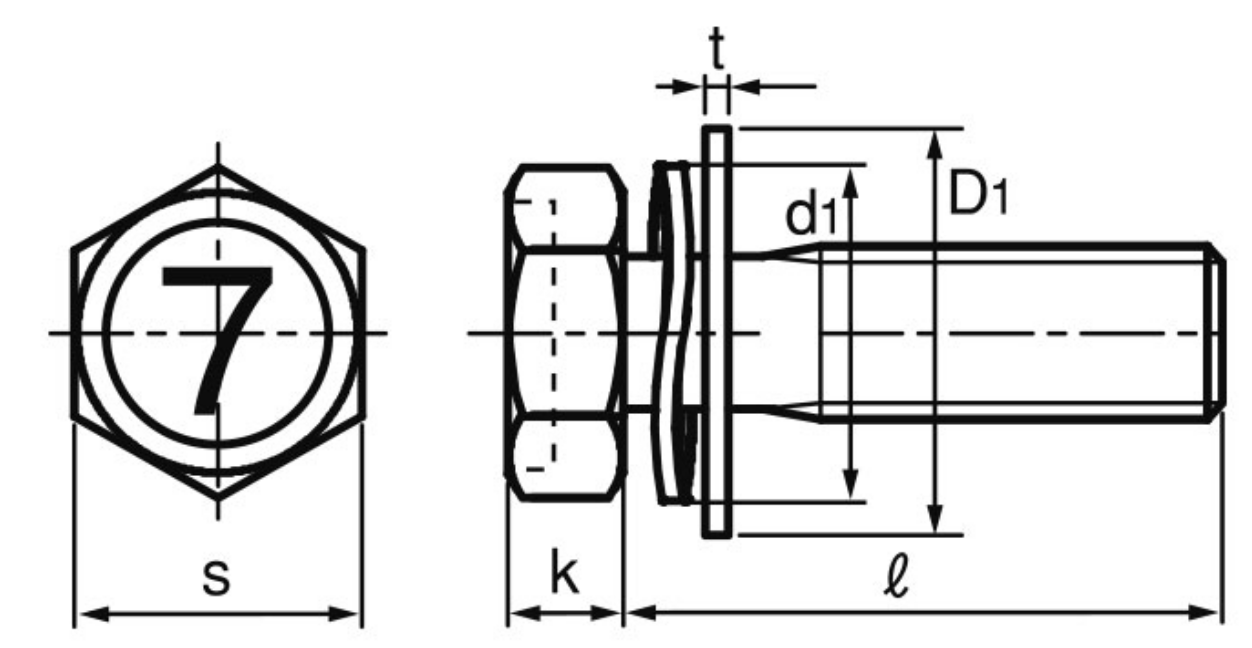

| Thread nominal size (d) | Pitch | K | S | Flat washer D1×t | Wave spring washer d1 (maximum) | ||
|---|---|---|---|---|---|---|---|
| Standard dimension | Tolerance | Standard dimension | Tolerance | ||||
| M10 | 1.25 | 7.0 | ±0.2 | 14.0 | 0 -0.25 | 22X1.6 | 17.2 |
