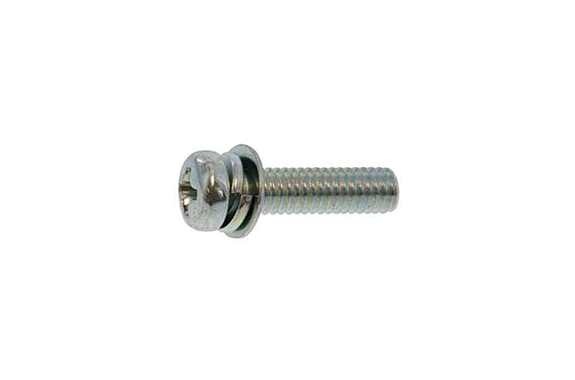

10-Q004 Perausu (+) Pan Head P=4
Model: 10-Q004
Dia range:M3～M5
Length range:6～20
Iron (or standard), Stainless steel (303, 304,…).
Plain, Trivalent zinc cr+3 color white, Trivalent zinc cr+3 color black, Nickel, GB (brown bronze), BK (SUS black oxide), SUS baking prevention coating.

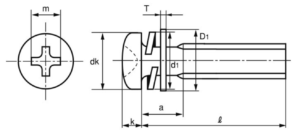

| Nominal Diameter (d) | Small Screw Section | Flat Washer D1xT | Pane Washer d1 (Max) | Incomplete Thread Section a (Max) | Guaranteed Tightening Plate Thickness | ||||
|---|---|---|---|---|---|---|---|---|---|
| dk | k | Cross Slot Number | |||||||
| Nominal Dimension | Tolerance | Standard Dimension | Tolerance | ||||||
| M3 | 5.5 | 0 -0.5 | 2.0 | ±0.15 | 2 | 6X0.5 | 5.5 | 1.90 | 0.70 |
| M4 | 7.0 | 2.6 | 8X0.5 | 7.0 | 2.50 | 1.00 | |||
| M5 | 9.0 | 0 -0.6 | 3.3 | 10X0.8 | 8.5 | 3.20 | 1.10 | ||
