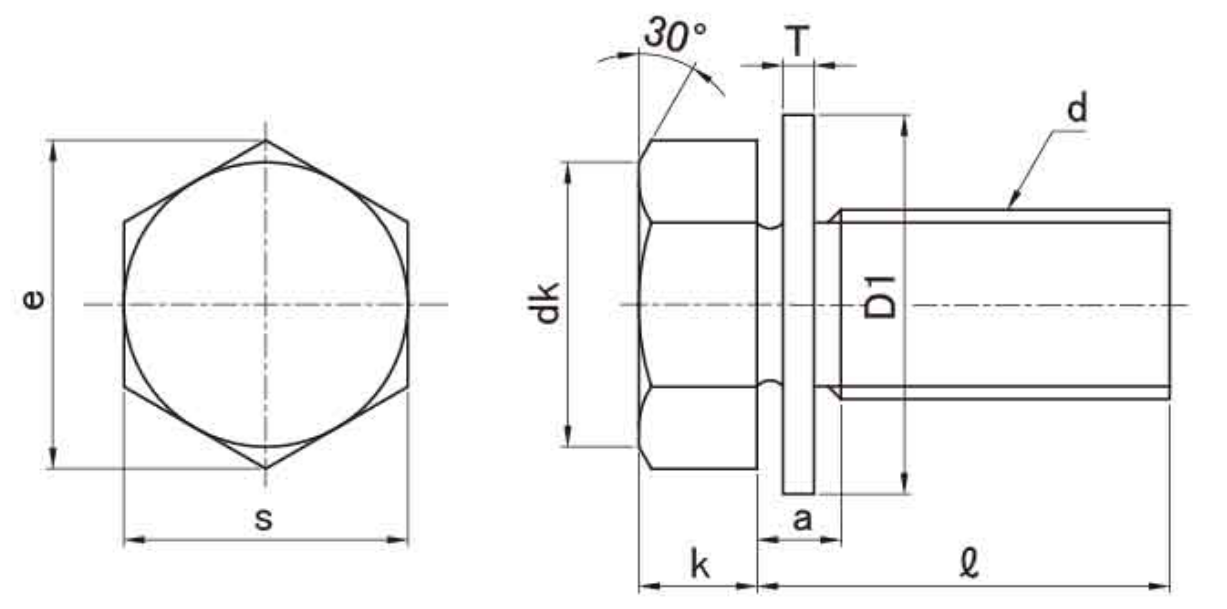

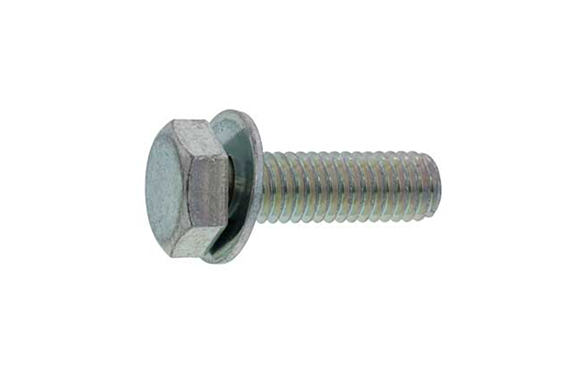

11-0001 Hexagon Head P=1
Model: 11-0001
Dia range:M4～M16
Length range:8～100
Iron (or standard), Stainless steel (303, 304,…).
Plain, Zinc blue cr6+, Zinc yellow cr6+, Trivalent zinc cr+3 color white,…
Unit: mm
| Thread nominal size (d) | k | S | e （Approx.） | dk （Approx.） | Flat washer D1 × T | a （Maximum value） | ||
|---|---|---|---|---|---|---|---|---|
| Standard dimension | Tolerance | Standard dimension | Tolerance | |||||
| M4 | 2.8 | ±0.1 | 7 | 0 -0.2 | 8.1 | 6.8 | 10×0.8 | 2.3 |
| M5 | 3.5 | ±0.15 | 8 | 9.2 | 7.8 | 12×0.8 | 2.7 | |
| M6 | 4.0 | 10 | 11.5 | 9.8 | 13×1.0 | 3.7 | ||
| M8 | 5.5 | 13 | 0 -0.25 | 15.0 | 12.6 | 18×1.6 | 4.2 | |
| M10 | 7.0 | ±0.2 | 17 | 19.6 | 16.5 | 22×1.6 | 5.2 | |
| M12 | 8.0 | 19 | 0 -0.35 | 21.9 | 18 | 26×2.3 | 6.2 | |
| M16 | 10.0 | 24 | 27.7 | 23 | 32×2.6 | 8.5 | ||
