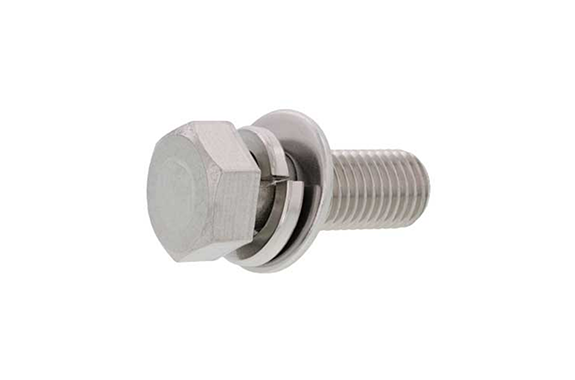

11-0003 Hexagon Head P=3
Model: 11-0003
Dia range:M3～M20
Length range:6～100
Iron (or standard), Brass, Stainless steel (303, 304,…).
Plain, Zinc blue cr6+, Zinc yellow cr6+, Trivalent zinc cr+3 color white,…
Unit: mm

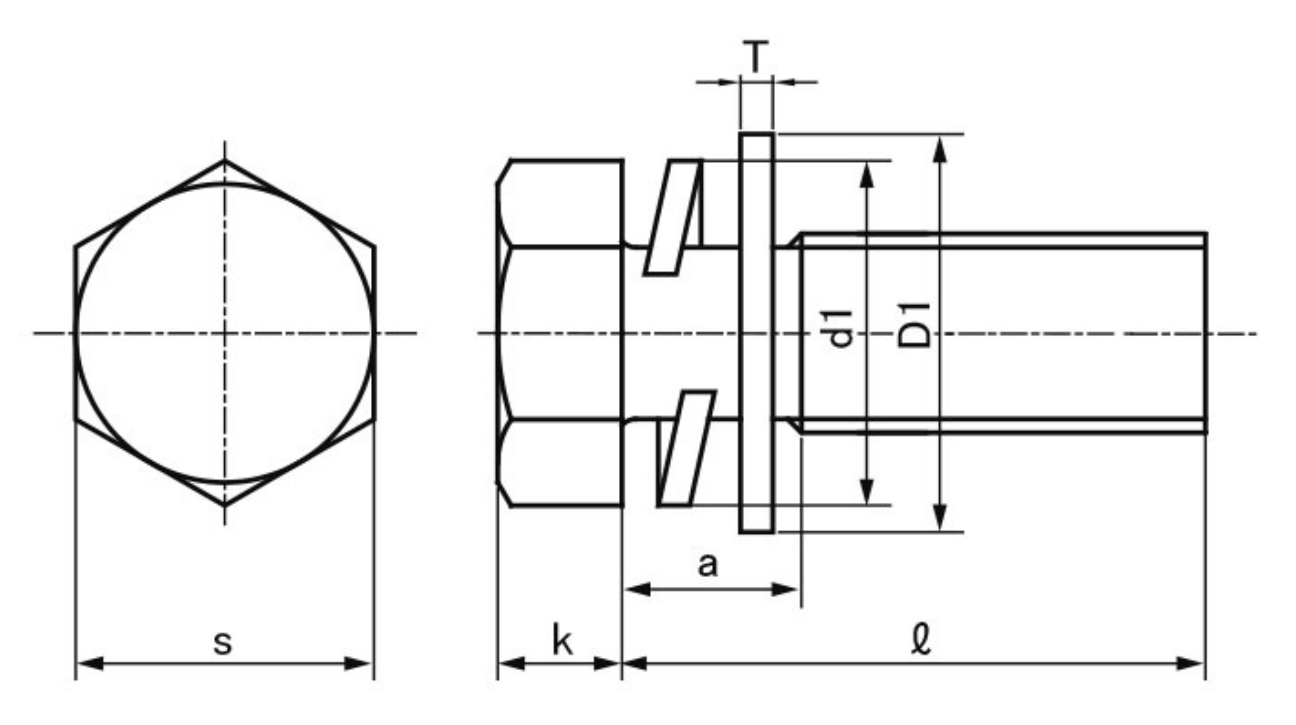

| Thread Nominal (d) | k | S | Flat Washer D1 × T | Spring Washer d1 (Max) | a （Max Value） | ||
|---|---|---|---|---|---|---|---|
| Standard dimension | Tolerance | Standard dimension | Tolerance | ||||
| M3 | 2.0 | ±0.1 | 5.5 | 0 -0.2 | 8X0.5 | 5.5 | 3.0 |
| M4 | 2.8 | 7 | 10X0.8 | 7.0 | 4.4 | ||
| M5 | 3.5 | ±0.15 | 8 | 12X0.8 | 8.5 | 5.2 | |
| M6 | 4.0 | 10 | 13X1.0 | 11.5 | 6.3 | ||
| M8 | 5.5 | 13 | 0 -0.25 | 18X1.6 | 14.5 | 8.4 | |
| M10 | 7.0 | ±0.2 | 17 | 22X1.6 ※1 | 17.5 | 10.0 | |
| M12 | 8.0 | 19 | 0 -0.35 | 26X2.3 ※1 | 20.5 | 12.3 | |
| M14 | 9.0 | ±0.3 | 22 | 0 -0.8 | 30X2.6 | 23.5 | 14.5 |
| M16 | 10.0 | ±0.2 | 24 | 0 -0.35 | 32X2.6 ※1 | 26.5 | 16.5 |
| M20 | 13.0 | ±0.35 | 30 | 0 -0.8 | 40X3.2 ※1 | 33.8 | 19.5 |
※1: In the case of SUS (stainless steel), the plate thickness changes.
For M10: 22×1.5,
M12: 26×2.0,
M16: 32×2.5,
M20: 40×3.0
