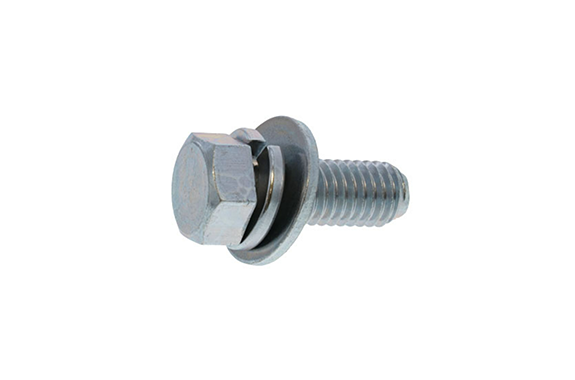

11-0053 Small Hexagon Head P=3
Model: 11-0053
Dia range:M8～M10
Length range:12～50
Iron (or standard).
Plain, Zinc blue cr6+, Zinc yellow cr6+, Trivalent zinc cr+3 color white,…

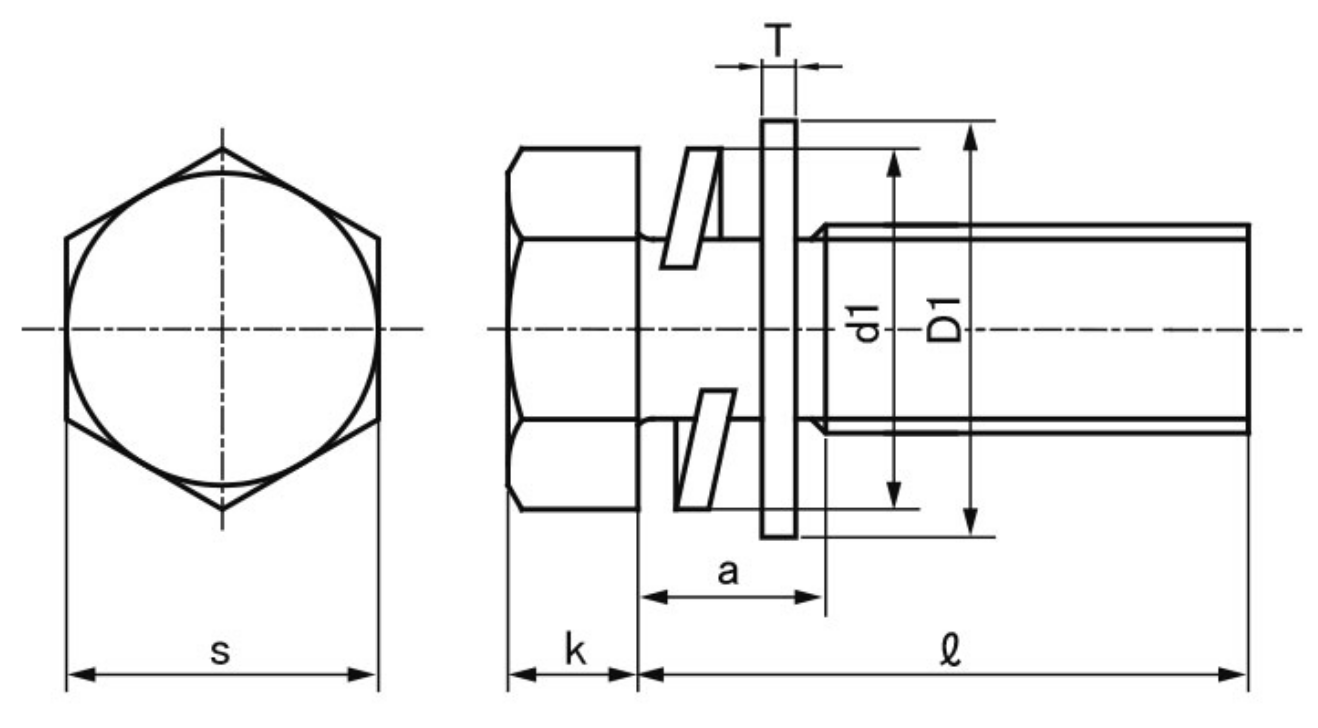

| Thread Nominal (d) | Pitch | k | S | Flat Washer D1 × T | Spring Washer d1 (Max) | a （Max Value） | ||
|---|---|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | |||||
| M8 | 1.25 | 5.5 | ±0.15 | 12 | 0 -0.25 | 18 X 1.6 | 14.5 | 8.4 |
| M10 | 1.5 | 7.0 | ±0.2 | 14 | 0 -0.25 | 22 X 1.6 | 17.5 | 10.4 |
