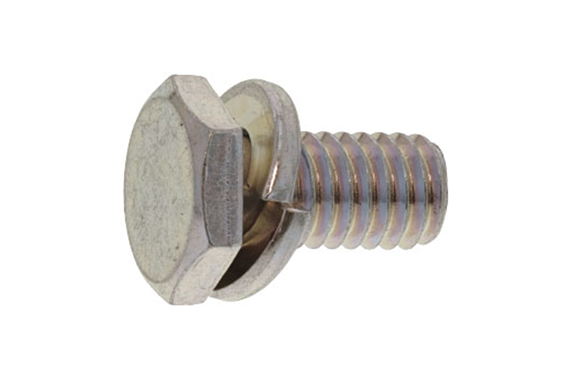

11-A002 Slim Hexagon Head P=2
Model: 11-A002
Dia range:M6～M6
Length range:10～12
Iron (or standard).
Zinc yellow cr6+, Zinc blue cr6+, Trivalent zinc cr+3 color white, Trivalent zinc cr+3 color black,…

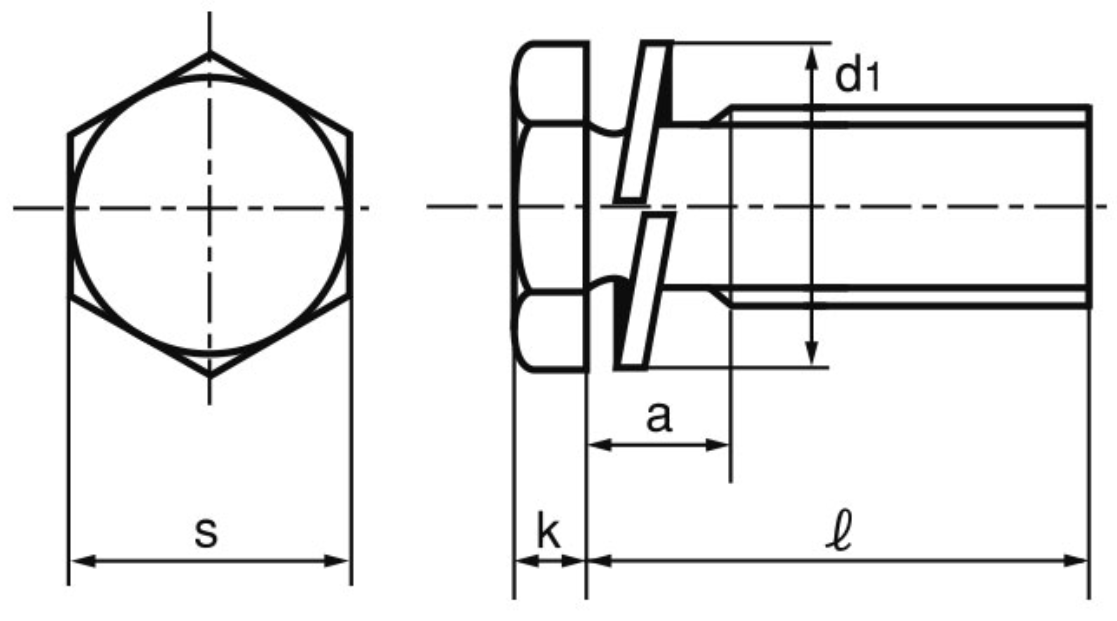

| Nominal Thread Size (d) | Pitch | k | s | Spring Washer d1 (Max.) | a (Max.) | ||
|---|---|---|---|---|---|---|---|
| Nominal Size | Tolerance | Nominal Size | Tolerance | ||||
| M6 | 1.0 | 2.5 | ±0.1 | 10 | 0 -0.2 | 11.5 | 4.5 |
