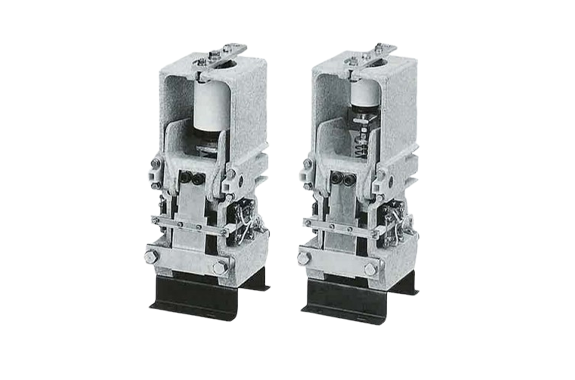

WashiON KYORITSU KEIKI VHS Type High-Voltage Vacuum Contactor

Manufacturer: WashiON KYORITSU KEIKI
Model: VSH Type

Features

High reliability:
As a result of thorough quality control, the product maintains consistently high reliability.
Compact design:
In addition, it uses multi-purpose, tracking-resistant glass polyester molding insulation, providing a compact structure with excellent insulation reliability.
Maintenance-free:
Therefore, low arc voltage, quick insulation recovery, and long service life minimize the need for vacuum interrupter maintenance.

Model			VHS 3–3	VHS 6–4 / VHS 6–4–1	VHS 6–4–2
Application			–	Standard specification	Condenser load
Rated voltage (V)			3300	6600	3300
Rated current (A)			300	400	300
Rated frequency (Hz)			50 / 60	50 / 60	50 / 60
Short-circuit breaking current (A)			4000	4000	4000
Short-time current (A)			4000, 1 sec	4000, 1 sec	4000, 1 sec
Insulation class			Class 3 – A	Class 6 – A	Class 6 – A
Insulation class (bet. common-mode poles)			Class 3 – B	Class 6 – B	Class 6 – B
Make current capacity (A)			2400 (AC3 class)	3200 (AC3 class)	3200 (AC3 class)
Break current capacity (A)			2400 (AC3 class)	3200 (AC3 class)	3200 (AC3 class)
Frequency of operation (times/h)			600	1200	1200
Electrical life			300A: 100,000 times, 150A: 250,000 times	250,000 times	100,000 times
Mechanical life			2,500,000 times	2,500,000 times	500,000 times
Min. operating voltage (V)			Rated voltage × 80% or below	Rated voltage × 80% or below	Rated voltage × 80% or below
Release voltage (V)			Rated voltage × 10% or above	Rated voltage × 10% or above	Rated voltage × 10% or above

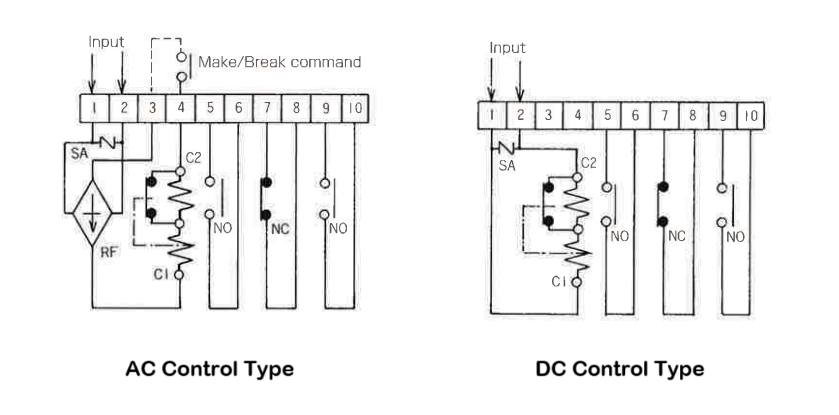

Control current(A)	AC100/110V	Make Hold	2.4/2.7 0.18/0.2	2.4/2.7 0.18/0.2	2.4/2.7 0.18/0.2
	AC100/110V	Make Hold	2.4/2.7 0.18/0.2	2.4/2.7 0.18/0.2	2.4/2.7 0.18/0.2
	AC100/110V	Make Hold	2.4/2.7 0.18/0.2	2.4/2.7 0.18/0.2	2.4/2.7 0.18/0.2
	AC100/110V	Make Hold	2.4/2.7 0.18/0.2	2.4/2.7 0.18/0.2	2.4/2.7 0.18/0.2
Auxiliary contacts		Arrangement	2 a 1 b	2 a 1 b	2 a 1 b
Auxiliary contacts		Rated	AC250V–15A, DC110V–5A	AC250V–15A, DC110V–5A	AC250V–15A, DC110V–5A
Withstand voltage of control circuit			2000V for 1 min	2000V for 1 min	2000V for 1 min
