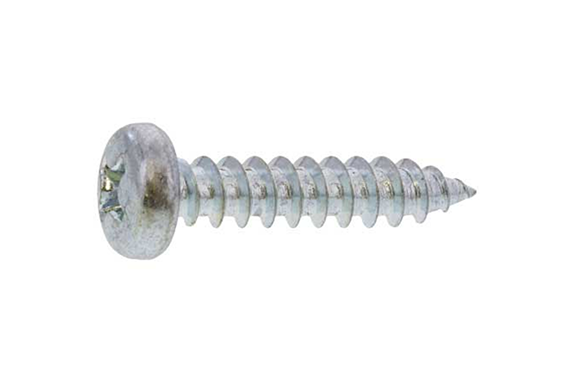

20-000F (+) Tapping Type A Big Pan
Model: 20-000F
Dia range:M3.5～M5
Length range:8～100
Iron (or standard).
Zinc blue cr6+, Trivalent zinc cr+3 color white, Trivalent zinc cr+3 color black, Nickel.

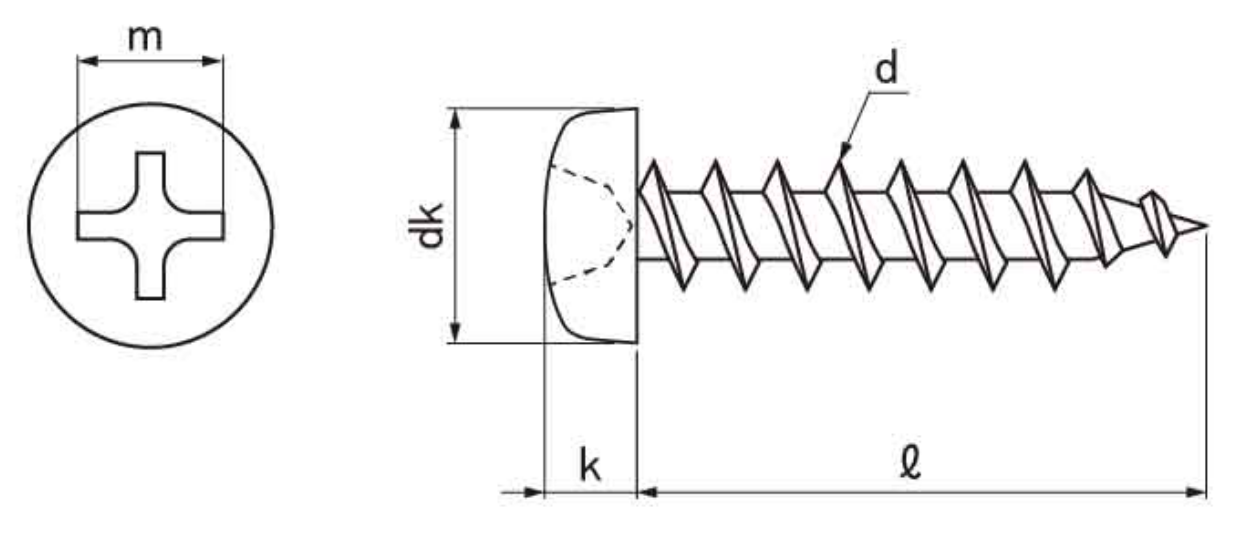

| Thread Nominal Diameter | 3.5 | 4 | 5 | ||
|---|---|---|---|---|---|
| dk | Standard Dimension | 7.0 | 8.0 | 10.5 | |
| Tolerance | 0 -0.5 | 0 -0.6 | 0 -0.7 | ||
| k | Standard Dimension | 2.6 | 2.9 | 3.3 | |
| Tolerance | ±0.15 | ±0.15 | ±0.15 | ||
| Cross Slot | m | Reference | 4.2 | 4.6 | 6.3 |
| Q | Max | 2.03 | 2.43 | 2.86 | |
| Min | 1.45 | 1.84 | 2.26 | ||
| Cross Slot No. | 2 | 2 | 2 | ||
| d | Max | 3.65 | 4.15 | 5.20 | |
| Min | 3.5 | 4 | 5 | ||
| Based on 25.4 mm thread pitch | 18 | 16 | 12 | ||
