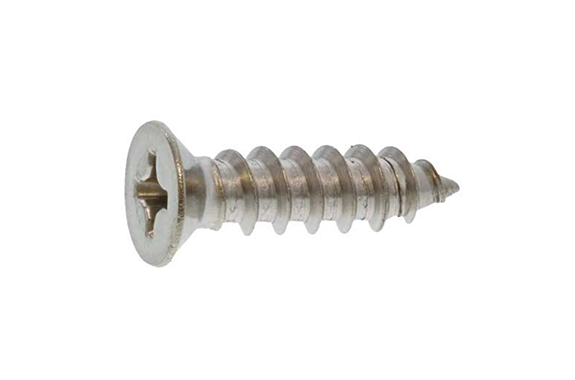

20-000H (+) Tapping A Small Flat D7
Model: 20-000H
Dia range:M4～M4
Length range:8～60
Iron (or standard), Stainless steel (303, 304,…).
Plain, Zinc blue cr6+, Zinc yellow cr6+, Trivalent zinc cr+3 color white,…
| Nominal Diameter | dk | k | Cross Slot | d | Based on Thread Pitch (25.4 mm) | ||||
|---|---|---|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | m | Cross Slot Number | Max | Min | ||
| 4 | 7 | 0 -0.5 | 1.75 | 0 -0.3 | 4.1 | 2 | 4.15 | 4 | 16 |
