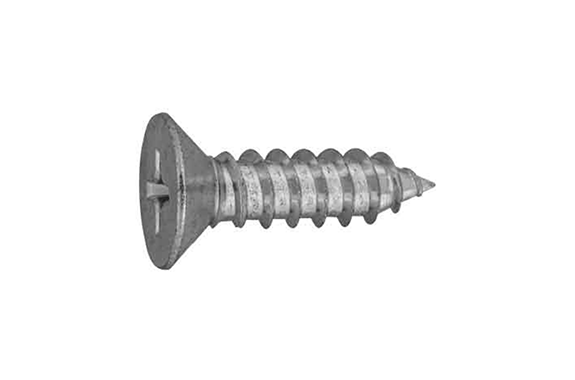

20-0P01 Neji Pack (+) Tapping A Flat
Model: 20-0P01
Dia range:M4～M4
Length range:16～75
Iron (or standard).
Zinc blue cr6+.
| Nominal Diameter (d) | dk | k | Cross Recess | Threads per 25.4mm | |||
|---|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | Reference (m) | Cross Recess Number | ||
| 4 | 8 | 0 -0.5 | 2.3 | 0 -0.3 | 4.5 | 2 | 16 |
