SUNCO

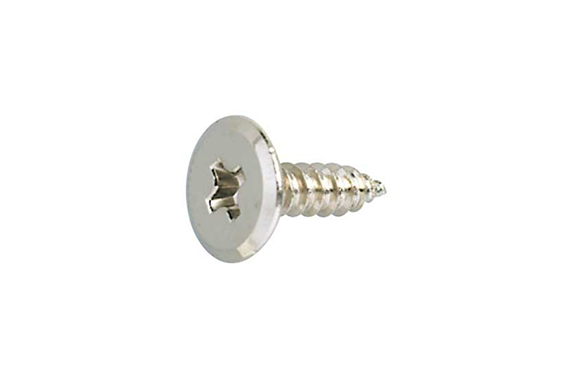

20-A100 (+) Tapping A Ultra Low Head
Model: 20-A100
Dia range:M3～M5
Length range:10～30
Iron (or standard), Stainless steel (303, 304,…).
Plain, Trivalent zinc cr+3 color black, Nickel, BK (SUS black oxide), Zinc black, Black nickel.

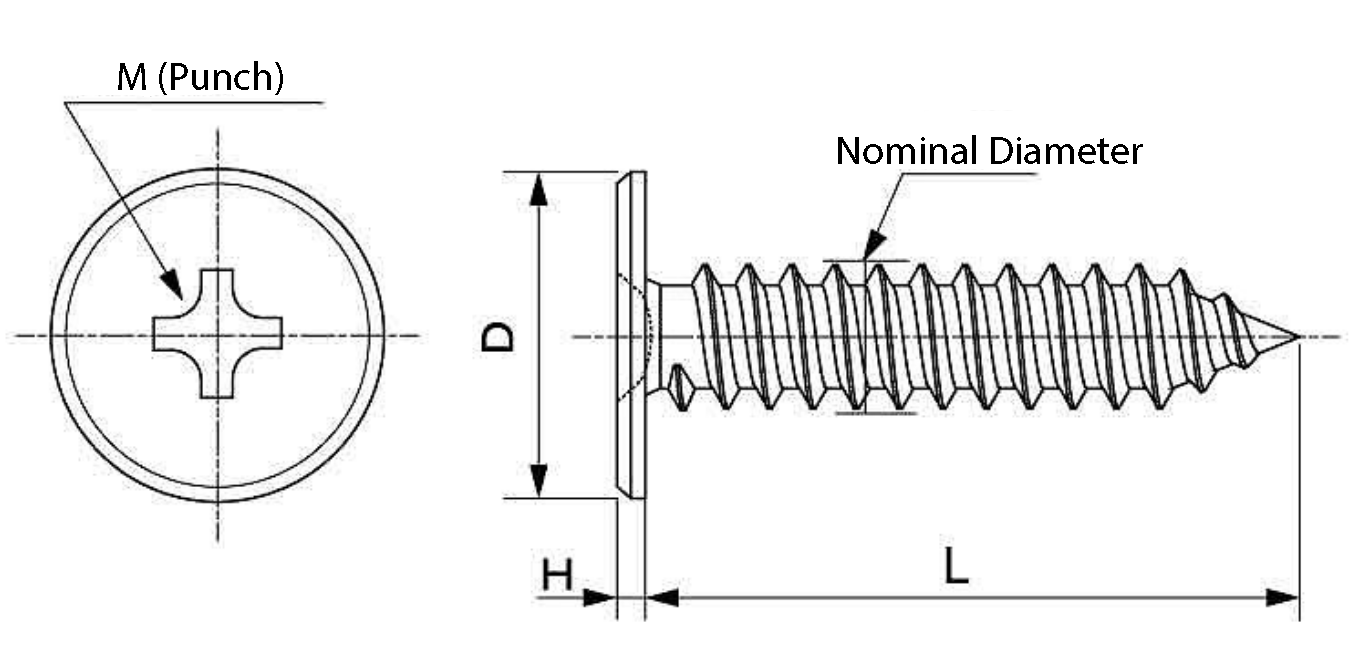

| Nominal Diameter | H | D | Cross Slot Number M | ||
|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | ||
| 3 | 0.9 | ±0.1 | 8.0 | 0 -0.5 | 2 |
| 4 | 1.1 | 9.0 | |||
| 5 | 1.2 | 10.0 | |||
