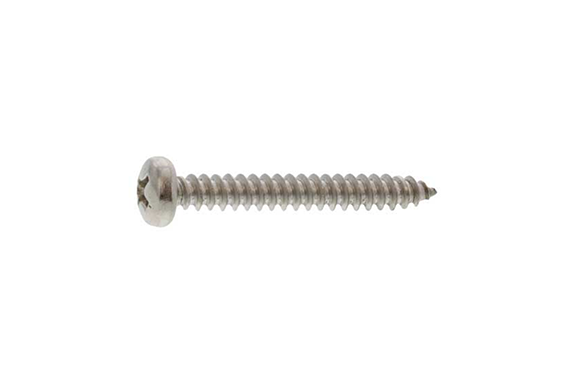

20-S000 (+) Tapping C Pan (ST Std)
Model: 20-S000
Stainless steel (303, 304,…).
Plain, GB (brown bronze), BK (SUS black oxide).

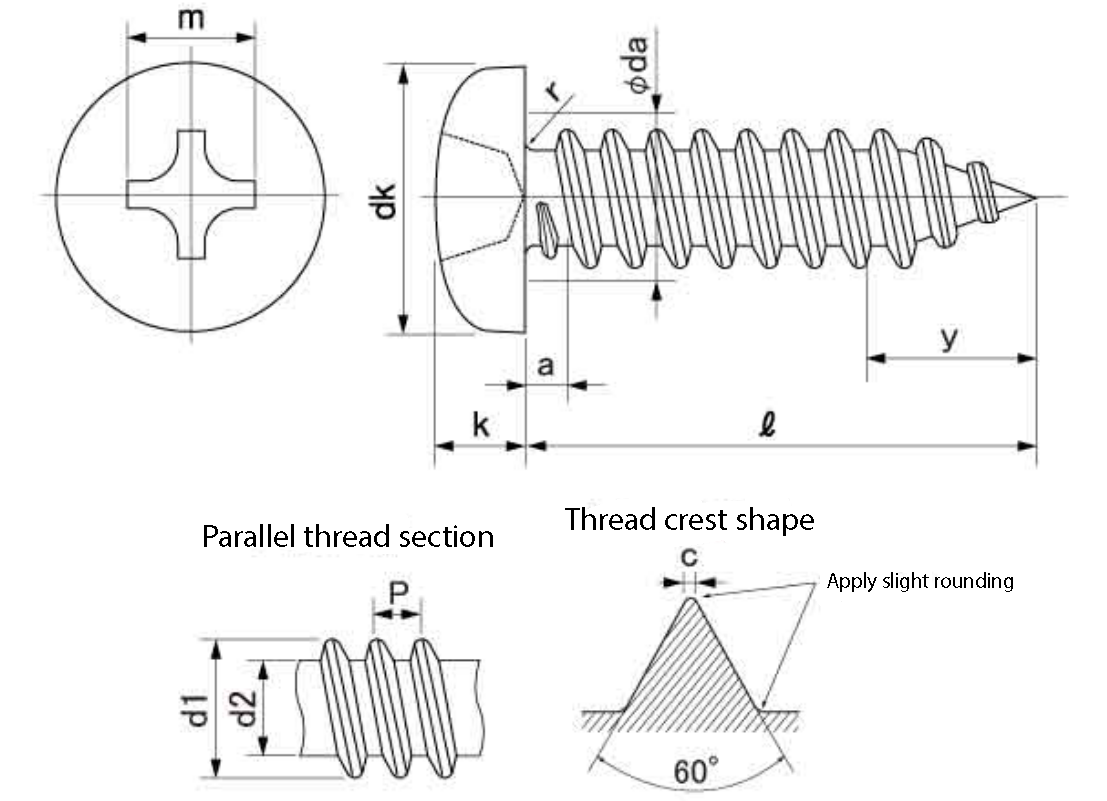

| Thread Specification | ST4.2 | |
|---|---|---|
| Pitch （P） | 1.4 | |
| a | Max | 1.4 |
| da | Max | 4.9 |
| dk | Max (Standard Dimension) | 8 |
| Min | 7.64 | |
| k | Max (Standard Dimension) | 3.1 |
| Min | 2.8 | |
| r | Min | 0.2 |
| Cross Slot Number | 2 | |
| m | Reference | 4.4 |
| y | Reference | 3.7 |
| d1 | Max | 4.22 |
| Min | 4.04 | |
| d2 | Max | 3.10 |
| Min | 2.95 | |
| c | Max | 0.1 |
