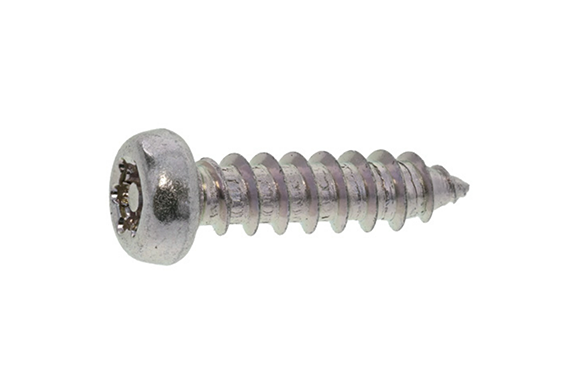

20-T100 Pin-TRX Tapping A Pan Head
Model: 20-T100
Dia range:M3～M4
Length range:5～50
Iron (or standard), Stainless steel (303, 304,…).
Plain, Zinc blue cr6+, Zinc yellow cr6+, Trivalent zinc cr+3 color white,…

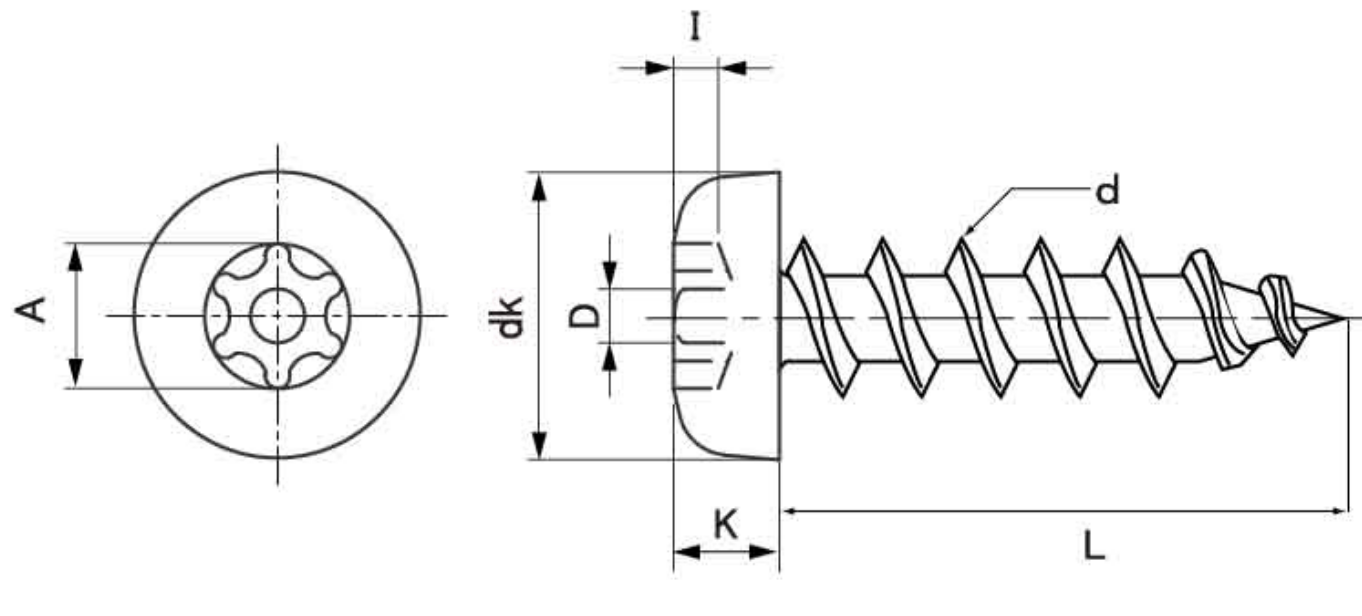

| Nominal Diameter | Drive Size | dk | k | A | I | D | d | Based on Thread Pitch (25.4 mm) | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | Reference | Min | Reference | Max | Min | |||
| 3 | T10 | 5.5 | 0 -0.5 | 2 | ±0.15 | 2.82 | 0.85 | 0.762 | 3.1 | 3 | 24 |
| 4 | T20 | 7 | 2.6 | 3.94 | 1.20 | 1.350 | 4.15 | 4 | 16 | ||
