21-0802 (+) Tapping Type B1 Pan P=2

Model: 21-0802
Dia range:M3~M5
Length range:8~25
Iron (or standard).
Zinc blue cr6+, Zinc yellow cr6+, Trivalent zinc cr+3 color white,…

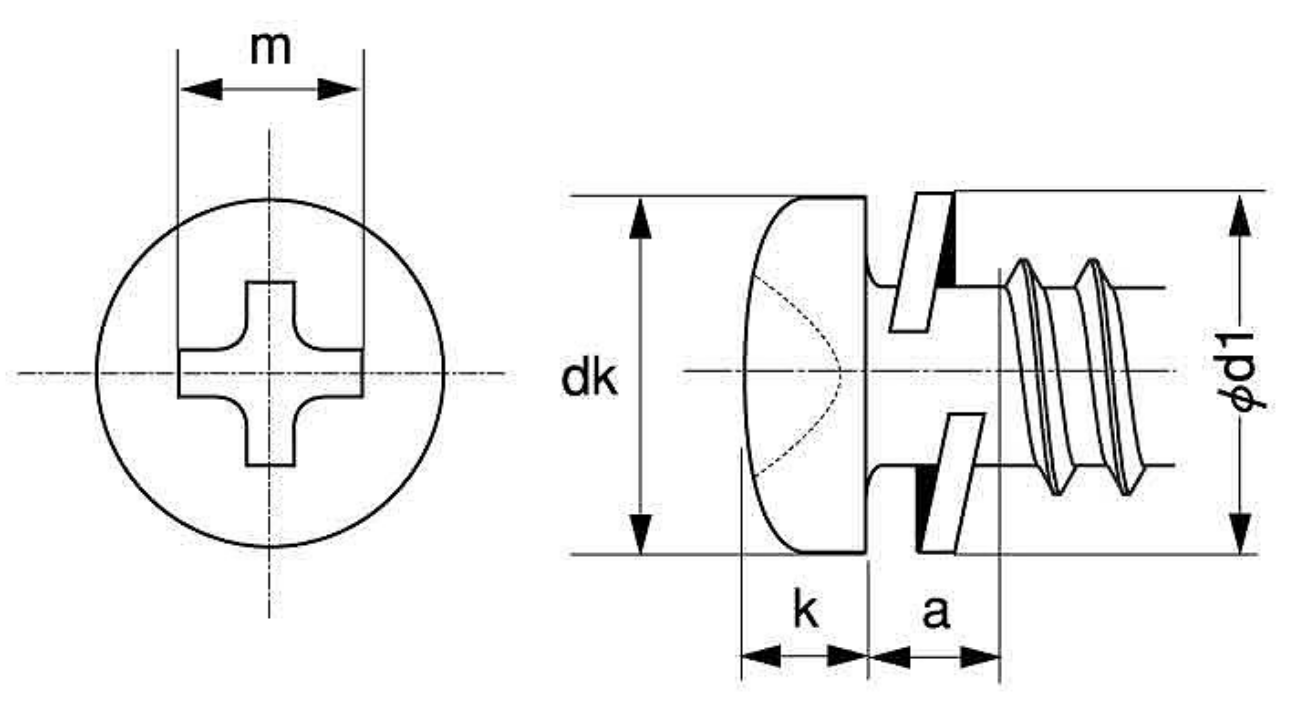

Thread Size | dk | k | Cross slot | Spring Washer | a (Reference) | ||
---|---|---|---|---|---|---|---|
Cross slot number | m (Reference) | d1 (Max) | |||||
3 | 5.5 | 0 -0.5 | 2±0.15 | 2 | 3.6 | 5.5 | 2.4 |
4 | 7 | 0 -0.5 | 2.6±0.15 | 2 | 4.2 | 7 | 3.5 |
