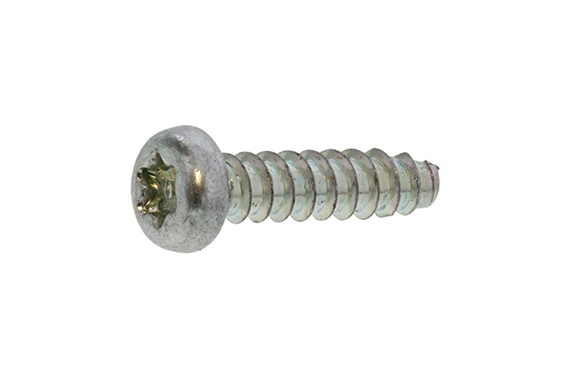

21-0T10 Pin-TRX Tapping Type B1 Pan
Model: 21-0T10
Dia range:M3～M3
Length range:6～12
Iron (or standard).
Trivalent zinc cr+3 color white, Trivalent zinc cr+3 color black, Nickel, Zinc black.

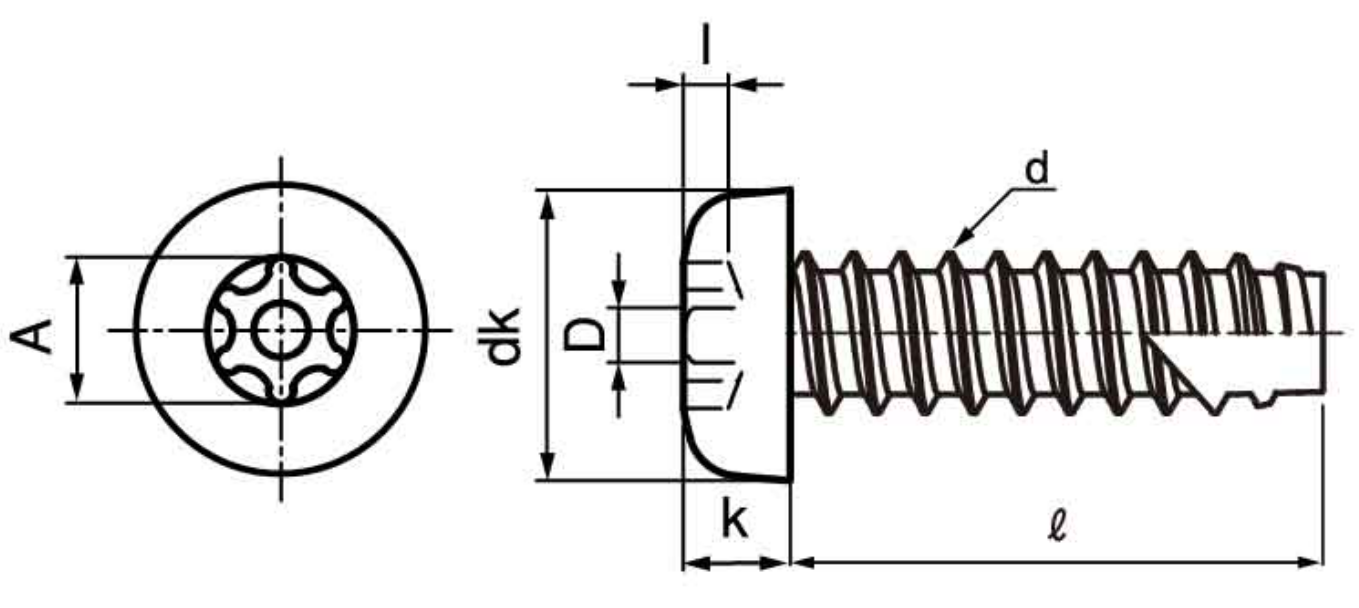

| d | Drive Size | dk | k | A | I | D | ||
|---|---|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | Reference | Min | Reference | ||
| 3 | T10 | 5.5 | 0 -0.5 | 2 | ± 0.15 | 2.82 | 0.70 | 0.76 |
