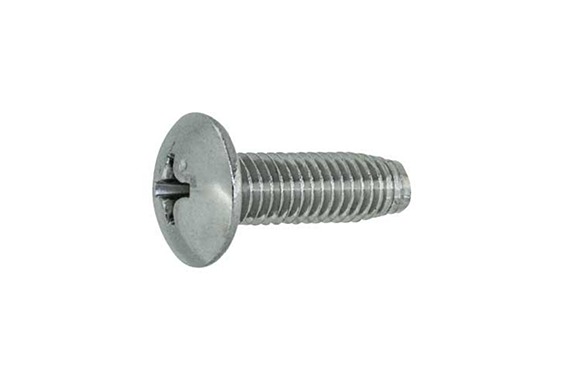

22-0108 + Tapping C1 Small Truss D8
Model: 22-0108
Dia range:M4～M5
Length range:5～35
Stainless steel (303, 304,…).
Plain, GB (brown bronze), BK (SUS black oxide), SABINAI JYAN,…

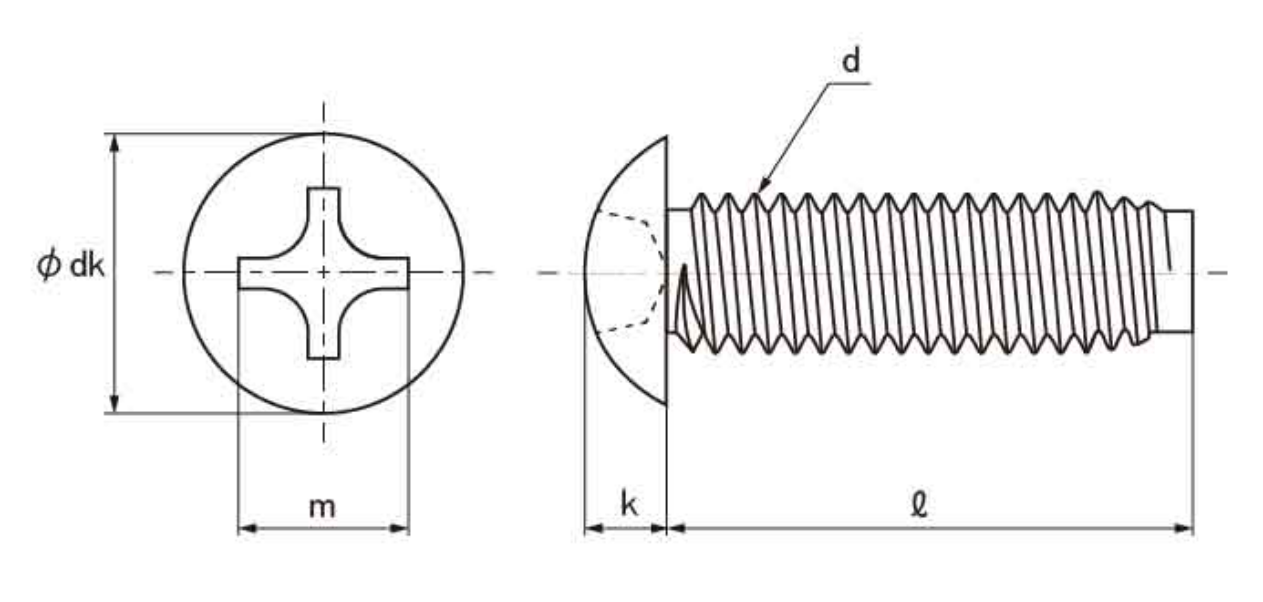

| Nominal Diameter | 4 | 5 | ||
|---|---|---|---|---|
| dk | Standard Dimension | 8.1 | 10.6 | |
| Tolerance | 0 -0.5 | 0 -0.6 | ||
| k | Standard Dimension | 2.20 | 2.80 | |
| Tolerance | ±0.15 | |||
| Cross Slot | m | Reference | 4.0 | 4.7 |
| Q | Max | 1.83 | 2.53 | |
| Min | 1.30 | 1.99 | ||
| Cross Slot Number | 2 | |||
| d | Max | 3.978 | 4.97 | |
| Min | 3.838 | 4.84 | ||
| P (Pitch) | 0.7 | 0.8 | ||
