22-010H (+) Tapping C0 Small Flat D7
Model: 22-010H
Dia range:M4～M4
Length range:8～25
Stainless steel (303, 304,…).
Plain, GB (brown bronze), BK (SUS black oxide), SABINAI JYAN,…

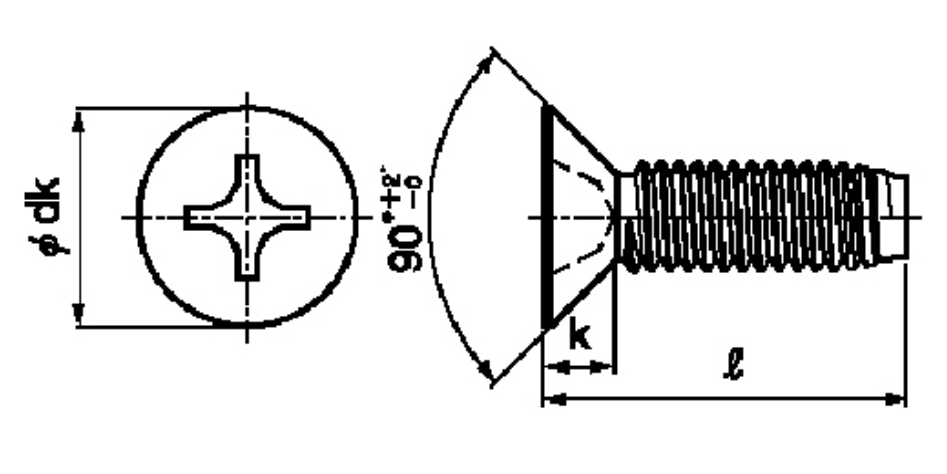

| Thread Designation | Pitch | Cross Recess Number | dk | k | m | ||
|---|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | Reference | |||
| 4 | 0.7 | 2 | 7 | 0 -0.5 | 1.75 | 0 -0.3 | 4.1 |
