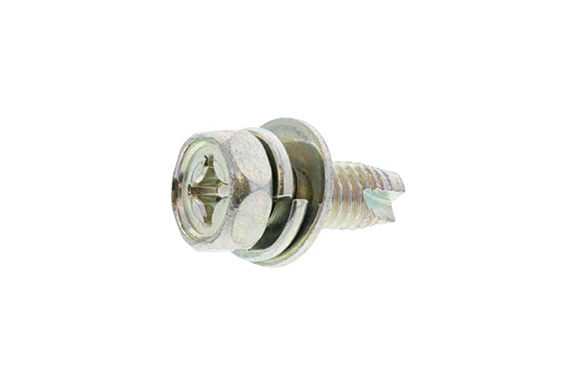

22-0A03 (+) Tapping C1 Upset P=3
Model: 22-0A03
Dia range:M6～M6
Length range:16～25
Iron (or standard).
Zinc blue cr6+, Zinc yellow cr6+, Trivalent zinc cr+3 color white, Trivalent zinc cr+3 color black, Non-Chrome white.

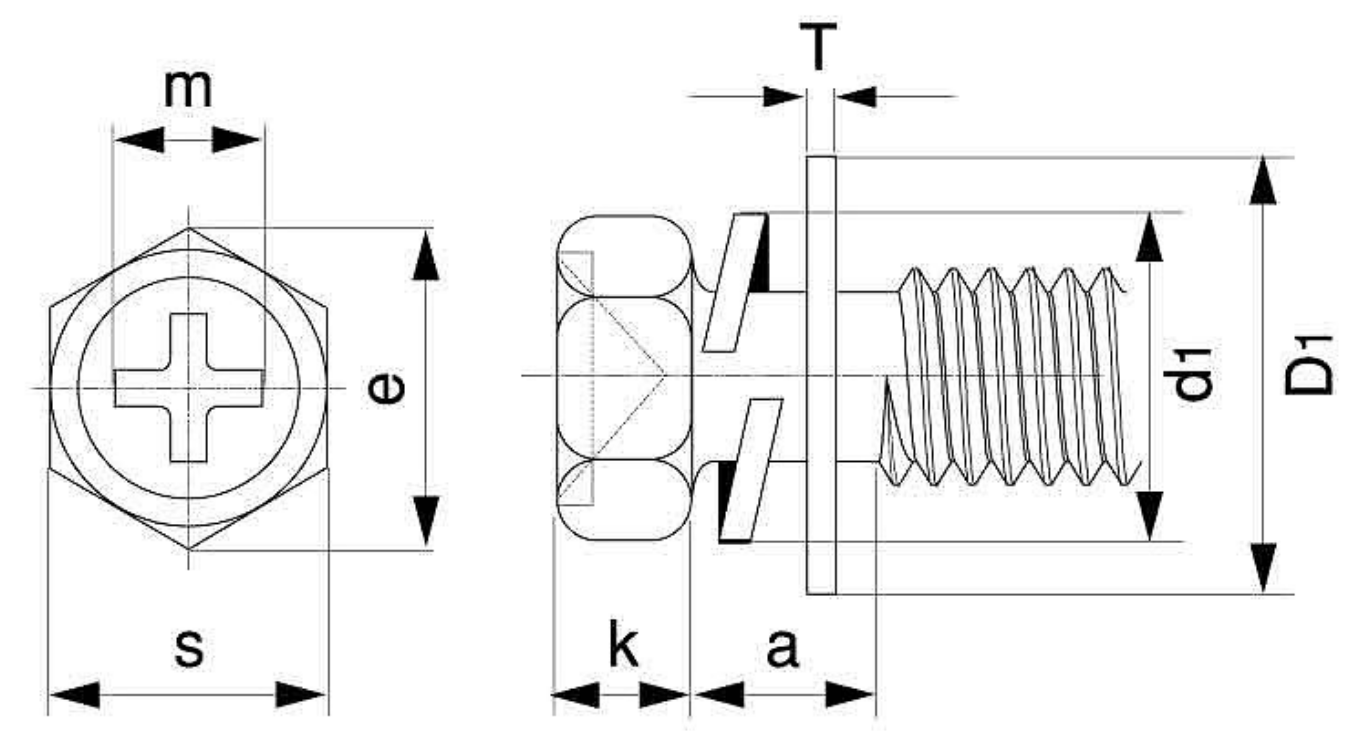

| Thread Nominal (d) | k | s | e (Approx.) | Cross Slot | Flat Washer D1 × T | Spring Washer d1 (Max) | a | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | No. | m (Reference) | |||||
| M6 | 4.0 | ±0.15 | 10 | 0 -0.2 | 10.9 | 3 | 6.2 | 13X1.0 | 11.5 | 6.3 |
