SUNCO

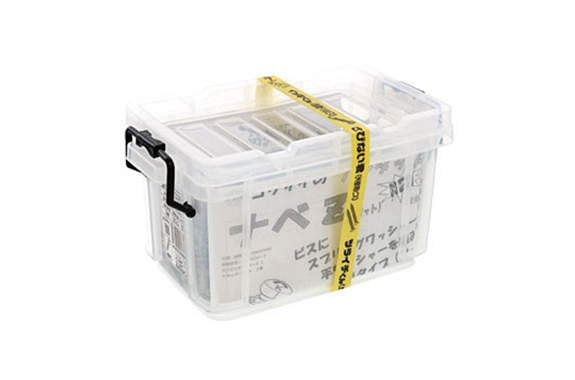

30-0N30 Non-tap Biscuits (BOX Small)
Model: 30-0N30
Dia range:M4～M5
Length range:10～55
Iron (or standard).
Plain, Trivalent zinc cr+3 color white, Giomet.

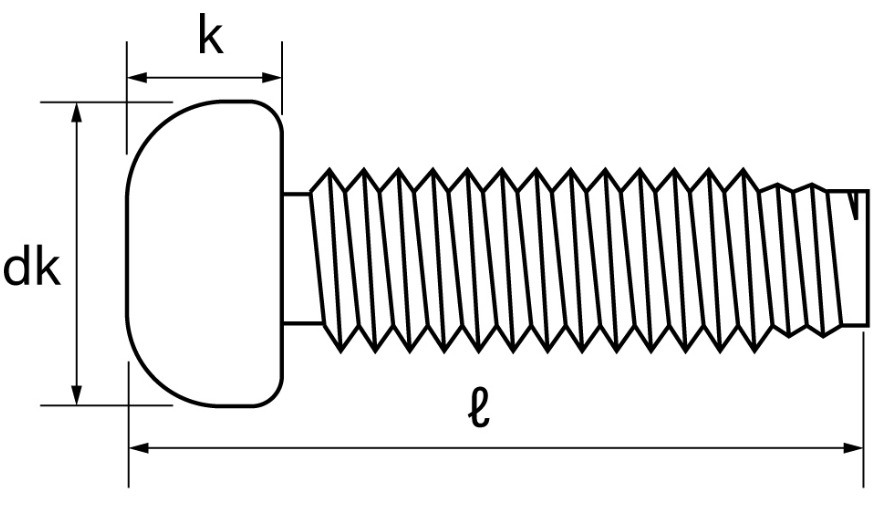

| Size | dk | k | Bottom Hole Diameter & Depth (Reference） |
|---|---|---|---|
| 4X10 | 7 | 2.6 | Plate Thickness: 0.8mm ~ 3.2mm = 3.5mm, 3.3mm or more = 3.7mm |
| 4X15 | 7 | 2.6 | |
| 4X20 | 7 | 2.6 | |
| 4X25 | 7 | 2.6 | |
| 4X35 | 7 | 2.6 | |
| 4X55 | 7 | 2.6 | |
| 5X10 | 8.7 | 3.5 | Plate Thickness: 0.8mm or more = 4.6mm |
| 5X15 | 8.7 | 3.5 | |
| 5X20 | 8.7 | 3.5 |
