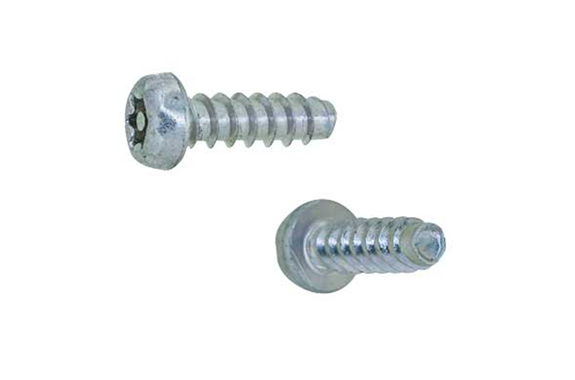

30-1U00 TRX Tamper B Type Pan Head
Model: 30-1U00
Dia range:M3～M4
Length range:6～16
Iron (or standard).
Zinc blue cr6+, Zinc yellow cr6+, Trivalent zinc cr+3 color white,…

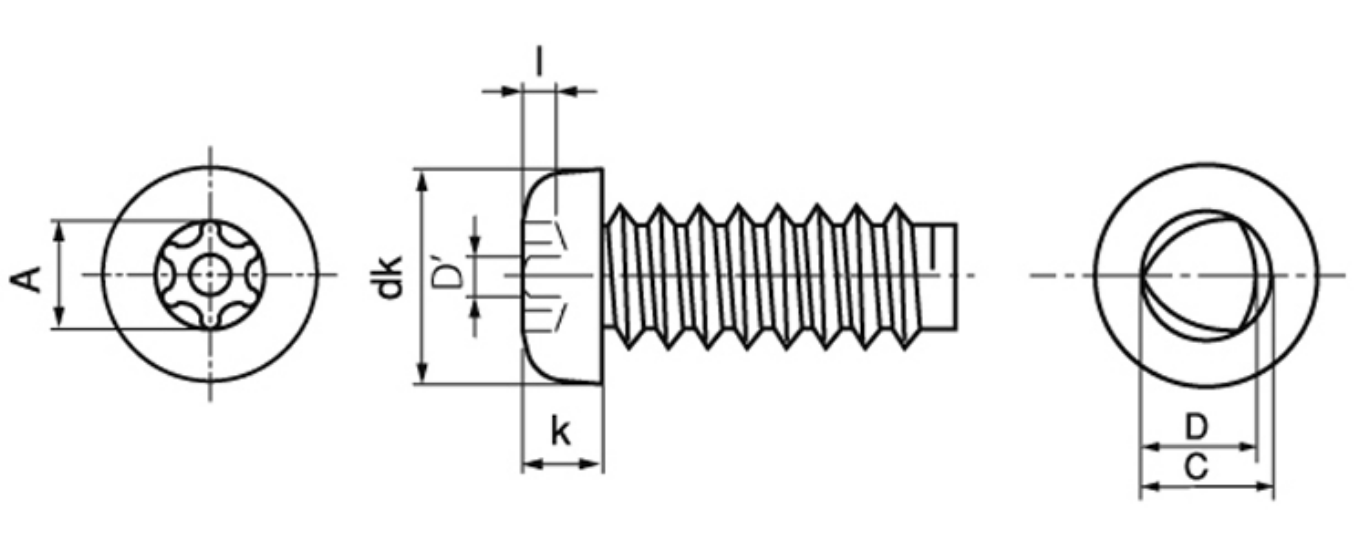

| Nominal diameter (d) | Pitch (threads per inch) | Drive size | dk | K | A | L | D’ | Screw diameter | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C | D | ||||||||||||
| Basic dimension | Tolerance | Basic dimension | Tolerance | Reference | Min | Reference | Max | Min | Max | Min | |||
| 3 | 24 | T10 | 5.5 | 0 -0.5 | 2 | ±0.15 | 2.82 | 0.85 | 0.762 | 3.05 | 2.95 | 2.95 | 2.85 |
| 4 | 18 | T20 | 7 | 2.6 | 3.94 | 1.2 | 1.350 | 4.05 | 3.95 | 3.91 | 3.81 | ||
