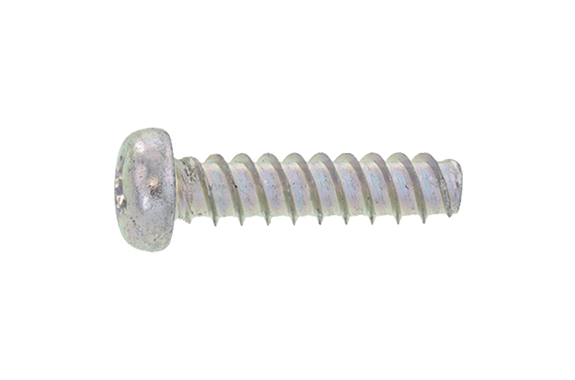

30-2000 Suncotite + P Type Pan
Model: 30-2000
Dia range:M2～M6
Length range:3～40
Iron (or standard), Stainless steel (303, 304,…), SUS410, SUS316L.
Plain, Zinc blue cr6+, Zinc yellow cr6+, Trivalent zinc cr+3 color white,…

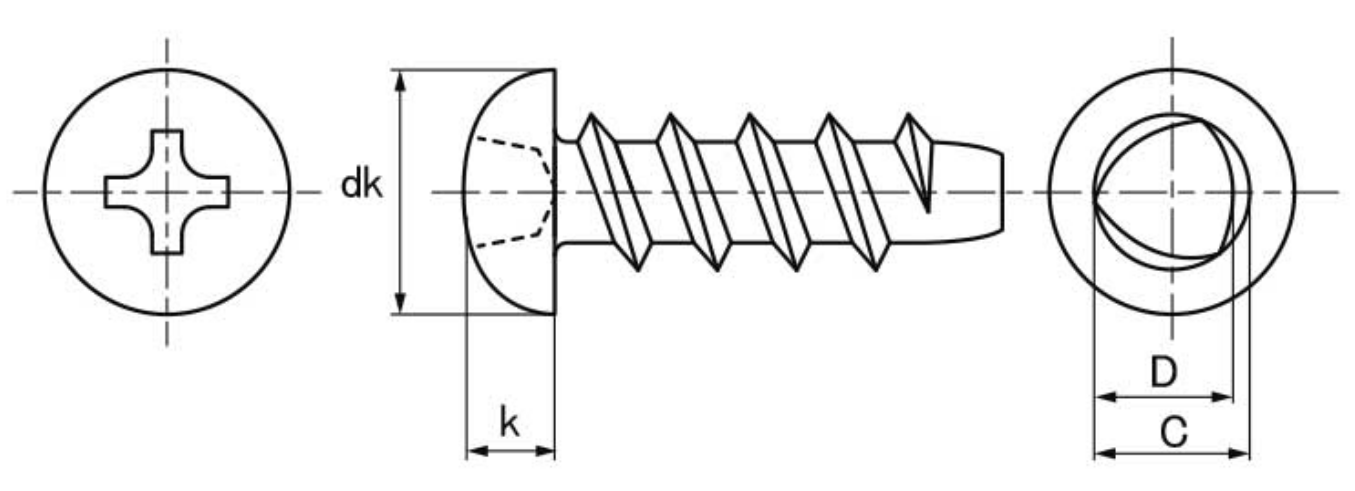

| Nominal diameter | Pitch (threads per inch) | dk | k | Cross recess number | Thread diameter | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Basic dimension | Tolerance | Basic dimension | Tolerance | C dimension | D dimension | |||||
| Max | Min | Max | Min | |||||||
| 2 | 32 | 3.5 | 0 -0.4 | 1.3 | ±0.1 | 1 | 2.11 | 2.02 | 2.03 | 1.94 |
| 2.3 | 28 | 4.0 | 1.5 | 2.42 | 2.33 | 2.34 | 2.25 | |||
| 2.5 | 24 | 4.5 | 1.7 | 2.62 | 2.53 | 2.53 | 2.44 | |||
| 2.6 | 24 | 4.5 | 1.7 | 2.72 | 2.63 | 2.63 | 2.54 | |||
| 3 | 20 | 5.5 | 0 -0.5 | 2.0 | ±0.15 | 2 | 3.14 | 3.03 | 3.04 | 2.93 |
| 3.5 | 18 | 6.0 | 2.3 | 3.65 | 3.54 | 3.56 | 3.45 | |||
| 4 | 16 | 7.0 | 2.6 | 4.15 | 4.04 | 4.01 | 3.90 | |||
| 5 | 14 | 9.0 | 0 -0.6 | 3.3 | 5.18 | 5.05 | 5.02 | 4.89 | ||
| 6 | 12 | 10.5 | 0 -0.7 | 3.9 | ±0.2 | 3 | 6.23 | 6.06 | 6.03 | 5.86 |
