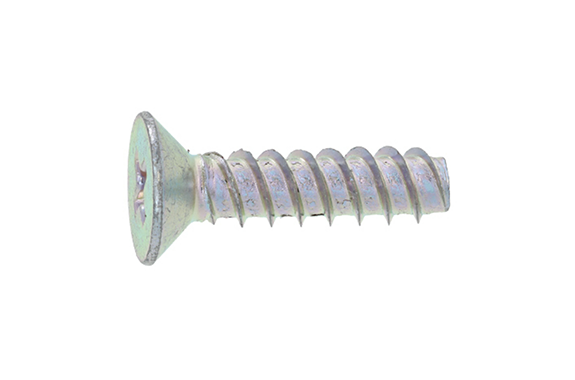

30-2001 Suncotite + P Type Flat
Model: 30-2001
Dia range:M2～M5
Length range:4～35
Iron (or standard), Stainless steel (303, 304,…), SUS410.
Plain, Zinc blue cr6+, Zinc yellow cr6+, Trivalent zinc cr+3 color white,…

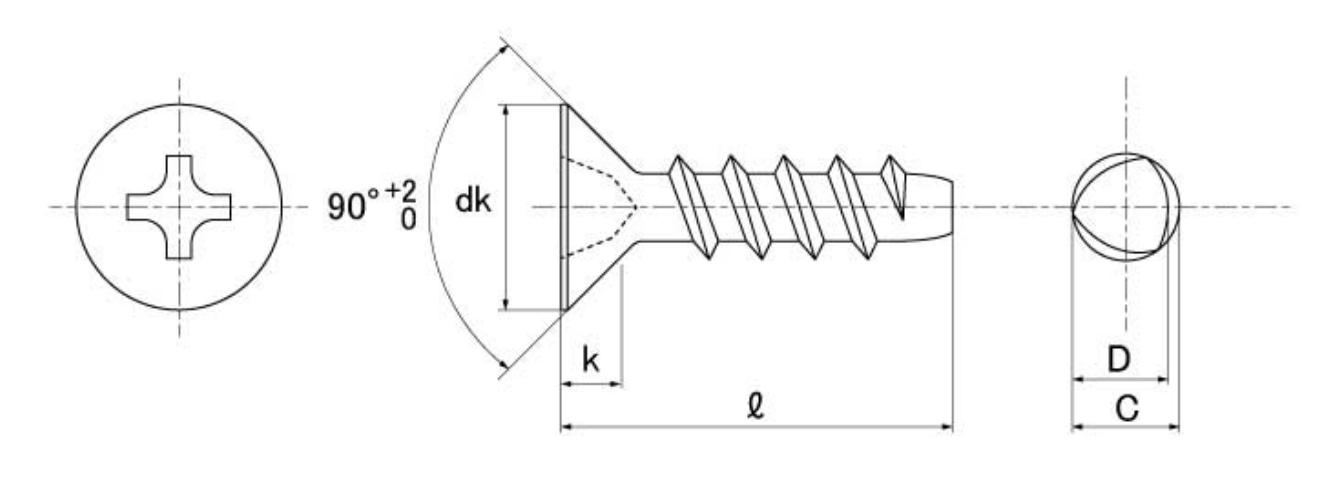

| Nominal thread size | Pitch (threads per inch) | dk | k | Cross recess number | Thread diameter | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Basic dimension | Tolerance | Basic dimension | Tolerance | C | D | |||||
| Max | Min | Max | Min | |||||||
| 2 | 32 | 4.0 | 0 -0.4 | 1.20 | 0 -0.2 | 1 | 2.11 | 2.01 | 2.03 | 1.93 |
| 2.3 | 28 | 4.6 | 1.35 | 2.42 | 2.32 | 2.34 | 2.24 | |||
| 2.5 | 24 | 5.0 | 1.45 | 2.63 | 2.53 | 2.54 | 2.44 | |||
| 2.6 | 24 | 5.2 | 1.50 | 2.72 | 2.62 | 2.63 | 2.53 | |||
| 3 | 20 | 6.0 | 0 -0.5 | 1.75 | 0 -0.3 | 2 | 3.14 | 3.02 | 3.04 | 2.92 |
| 3.5 | 18 | 7.0 | 2.00 | 3.65 | 3.53 | 3.56 | 3.44 | |||
| 4 | 16 | 8.0 | 2.30 | 4.15 | 4.03 | 4.01 | 3.89 | |||
| 5 | 14 | 10.0 | 0 -0.6 | 2.80 | 5.19 | 5.05 | 5.03 | 4.89 | ||
