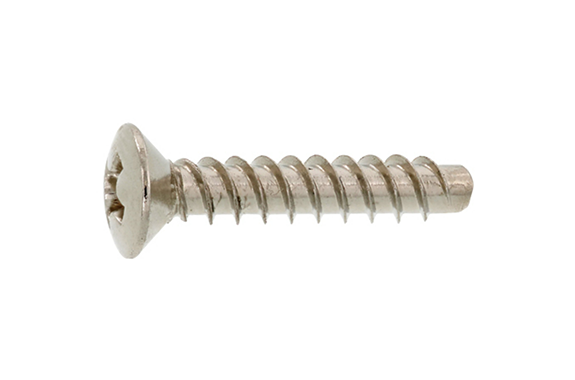

30-2002 Suncotite + P Type Oval
Model: 30-2002
Dia range:M2.6～M2.6
Length range:14～14
Iron (or standard).
Nickel, Zinc black.

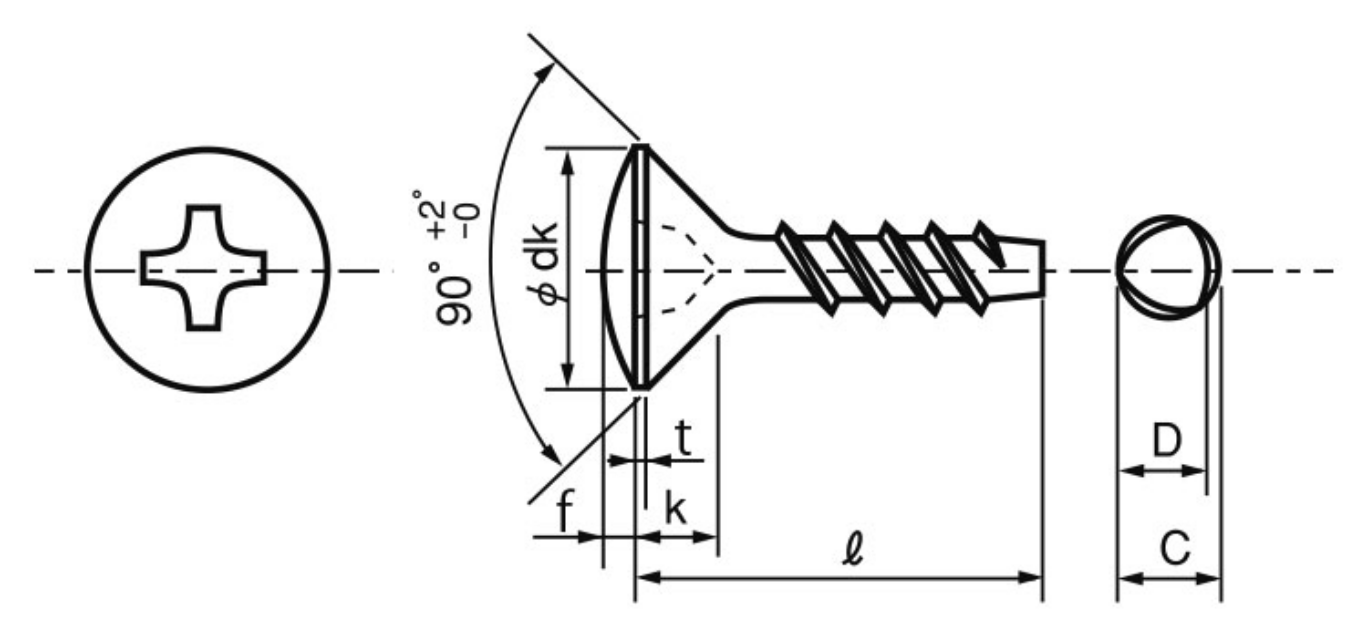

| Nominal thread size | Pitch | Cross recess number | dk | k | t | f | k+f | Thread diameter | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Basic dimension | Tolerance | Basic dimension | Tolerance | Basic dimension | C | D | |||||||
| Approx. | Approx. | Max | Min | Max | Min | ||||||||
| M2.6 | 24 | 1 | 5.2 | 0 -0.4 | 1.5 | 0 -0.2 | 0.2 | 0.6 | 2.1 | 2.72 | 2.62 | 2.63 | 2.53 |
