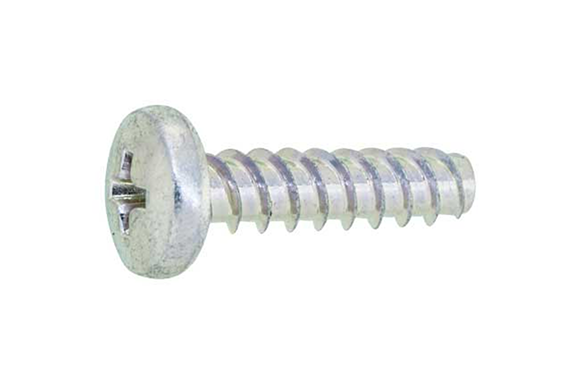

30-2004 Suncotite + P Type Bind
Model: 30-2004
Dia range:M2～M5
Length range:4～40
Iron (or standard), Stainless steel (303, 304,…), SUS410.
Plain, Zinc blue cr6+, Zinc yellow cr6+, Trivalent zinc cr+3 color white,…

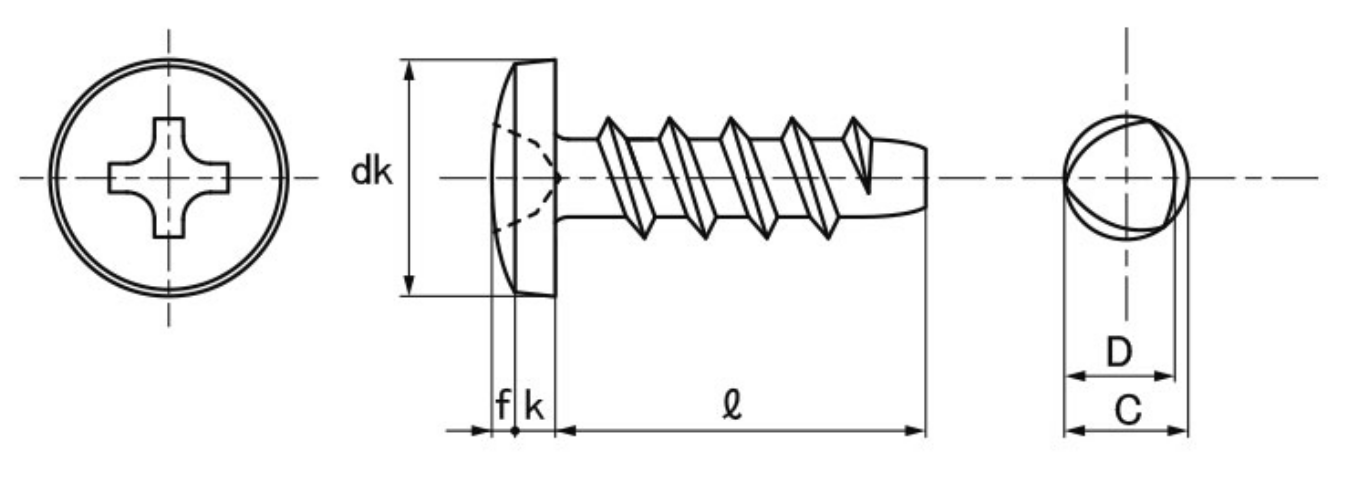

| Nominal Diameter | Pitch (Threads per Inch) | dk | k | f | k+f | Cross Slot Number | Screw Diameter | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Approx. | Standard Dimension | Tolerance | Standard Dimension | Tolerance | C | D | |||||
| Max | Min | Max | Min | ||||||||||
| 2 | 32 | 4.3 | 0 -0.4 | 0.85 | 0.35 | ±0.1 | 1.2 | ±0.15 | 1 | 2.11 | 2.01 | 2.03 | 1.93 |
| 2.3 | 28 | 4.9 | 1.0 | 0.4 | 1.4 | 2.42 | 2.33 | 2.34 | 2.25 | ||||
| 2.5 | 24 | 5.3 | 1.0 | 0.5 | 1.5 | 2.63 | 2.53 | 2.54 | 2.44 | ||||
| 2.6 | 24 | 5.5 | 1.1 | 0.5 | 1.6 | 2.72 | 2.62 | 2.63 | 2.53 | ||||
| 3 | 20 | 6.3 | 0 -0.5 | 1.3 | 0.6 | 1.9 | 2 | 3.14 | 3.02 | 3.04 | 2.92 | ||
| 3.5 | 18 | 7.3 | 1.5 | 0.7 | ±0.15 | 2.2 | ±0.2 | 3.65 | 3.53 | 3.56 | 3.44 | ||
| 4 | 16 | 8.3 | 1.7 | 0.8 | 2.5 | 4.15 | 4.03 | 4.01 | 3.89 | ||||
| 5 | 14 | 10.3 | 0 -0.6 | 2.1 | 1.0 | 3.1 | 5.19 | 5.05 | 5.03 | 4.89 | |||
