SUNCO

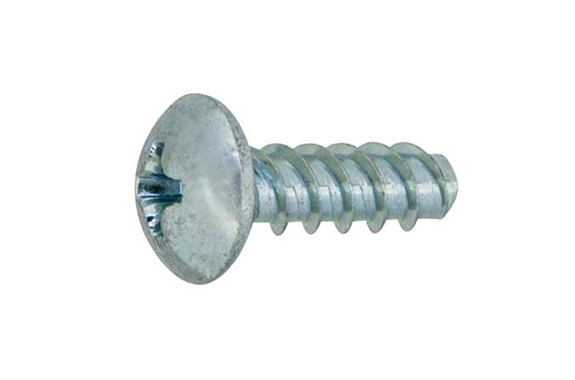

30-200E Suncotite + P Type Brazier
Model: 30-200E
Dia range:M2～M4
Length range:6～20
Iron (or standard).
Zinc blue cr6+, Zinc yellow cr6+, Trivalent zinc cr+3 color white,…

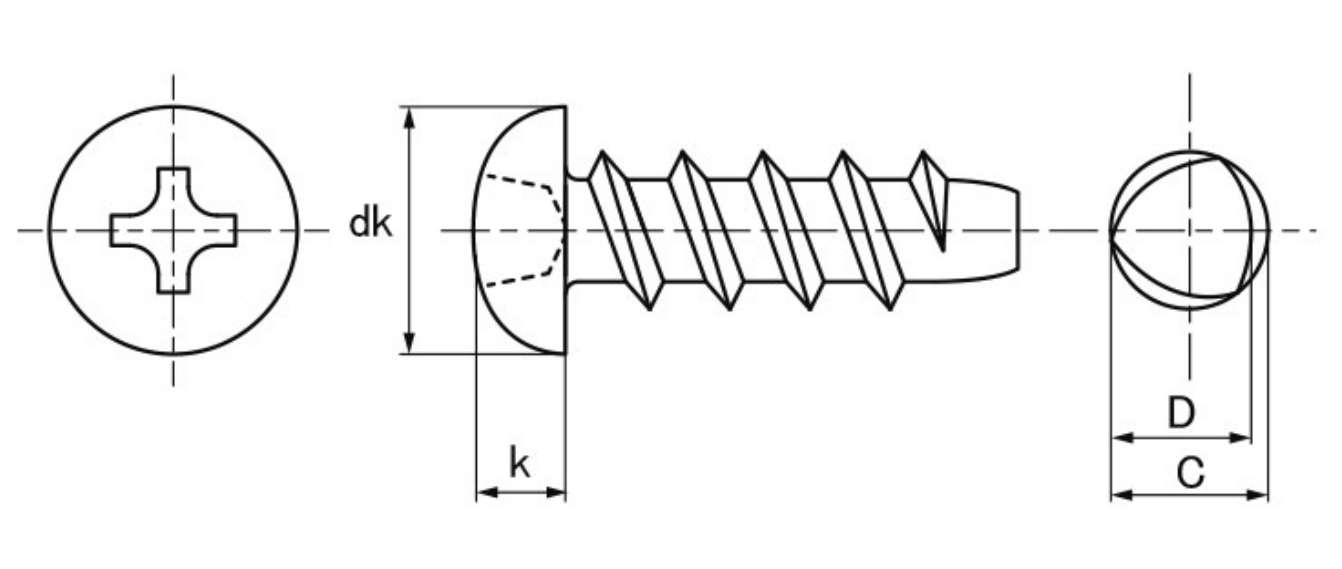

| Nominal Diameter | Pitch (Threads per Inch) | dk | k | Cross Slot Number | Screw Diameter | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | C | D | |||||
| Max | Min | Max | Min | |||||||
| 2 | 32 | 4.2 | 0 -0.4 | 1.50 | ±0.1 | 1 | 2.11 | 2.01 | 2.03 | 1.93 |
| 3 | 20 | 6.4 | 0 -0.5 | 2.45 | ±0.15 | 2 | 3.14 | 3.02 | 3.04 | 2.92 |
| 4 | 16 | 8.5 | 2.70 | 4.15 | 4.03 | 4.01 | 3.89 | |||
