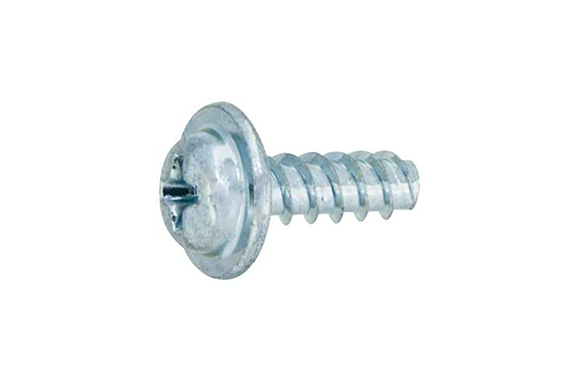

30-200W Suncotite + P Type PanWH
Model: 30-200W
Dia range:M2～M5
Length range:4～35
Iron (or standard), Stainless steel (303, 304,…).
Plain, Zinc blue cr6+, Zinc yellow cr6+, Trivalent zinc cr+3 color white,…

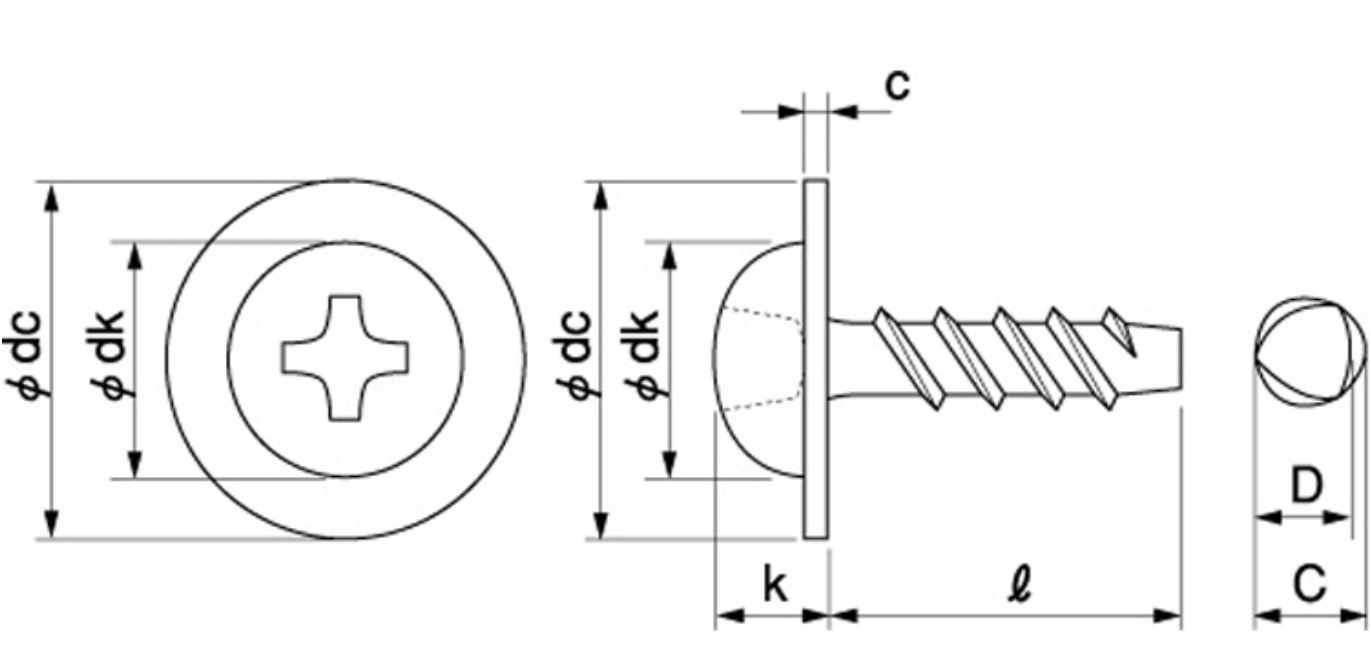

| Nominal Diameter | Pitch (Threads per Inch) | dk | dc | k | c | Cross Slot Number | Screw Diameter | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | Standard Dimension | Tolerance | Dimensions | C | D | |||||
| Max | Min | Max | Min | ||||||||||
| 2 | 32 | 3.5 | 0 -0.4 | 4.3 | 0 -0.4 | 1.70 | ±0.1 | (0.4) | 1 | 2.11 | 2.01 | 2.03 | 1.93 |
| 2.3 | 28 | 4.0 | 6.0 | 1.90 | (0.4) | 2.42 | 2.32 | 2.34 | 2.24 | ||||
| 2.6 | 24 | 4.5 | 6.5 | 2.10 | (0-5) | 2.72 | 2.62 | 2.63 | 2.53 | ||||
| 3 | 20 | 5.5 | 0 -0.5 | 8.0 | 0 -0.5 | 2.20 | ±0.15 | (0.6) | 2 | 3.14 | 3.02 | 3.04 | 2.92 |
| 3.5 | 18 | 6.0 | 9.0 | 2.70 | (0.6) | 3.65 | 3.53 | 3.56 | 3.44 | ||||
| 4 | 16 | 7.0 | 10.0 | 3.10 | (0.8) | 4.15 | 4.03 | 4.01 | 3.89 | ||||
| 5 | 14 | 9.0 | 12.0 | 3.80 | (08) | 5.19 | 5.05 | 5.03 | 4.89 | ||||
