SUNCO

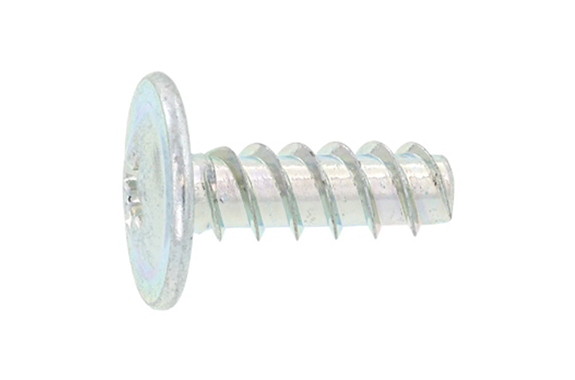

30-2A0W Suncotite + P Type ThinWH
Model: 30-2A0W
Dia range:M2.3～M2.6
Length range:6～8
Iron (or standard).
Trivalent zinc cr+3 color white, Trivalent zinc cr+3 color black, Nickel.

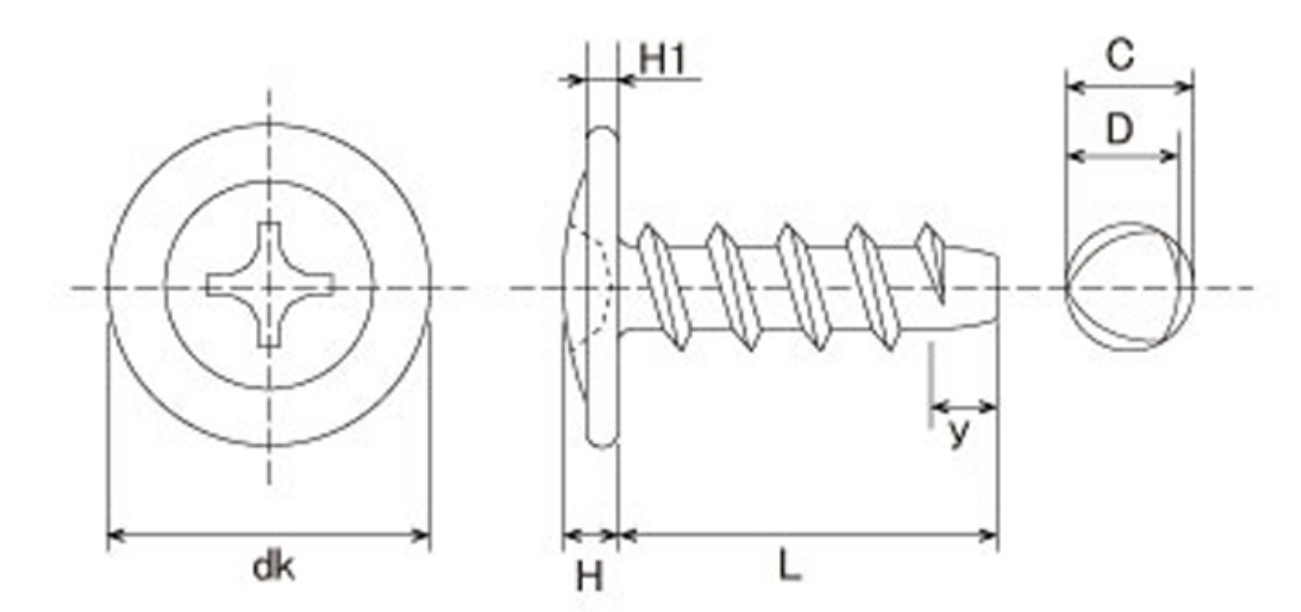

| Nominal diameter | dk Head diameter | H Head height | H1 Flange height | y Taper section | C | D | Cross recess No. |
|---|---|---|---|---|---|---|---|
| 2.3 | 6 | 1 | (0.5) | 1.8〜2.3 | 2.33〜2.43 | 2.25〜2.35 | No. 1 |
| 2.6 | 6.5 | 1 | (0.5) | 2.1〜2.6 | 2.63〜2.73 | 2.54〜2.64 |
