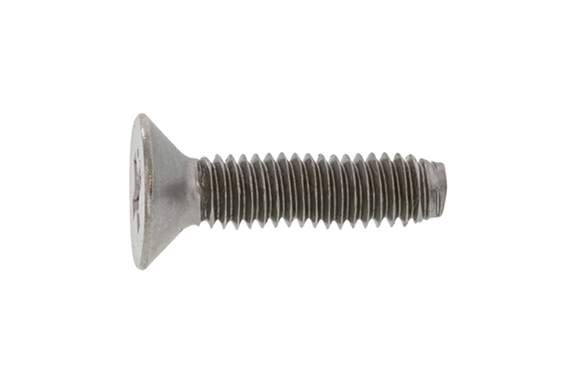

30-5001 Sunlock + Flat Head
Model: 30-5001
Dia range:M3～M5
Length range:8～35
SUS410, PS550.
Plain, GB (brown bronze), BK (SUS black oxide).

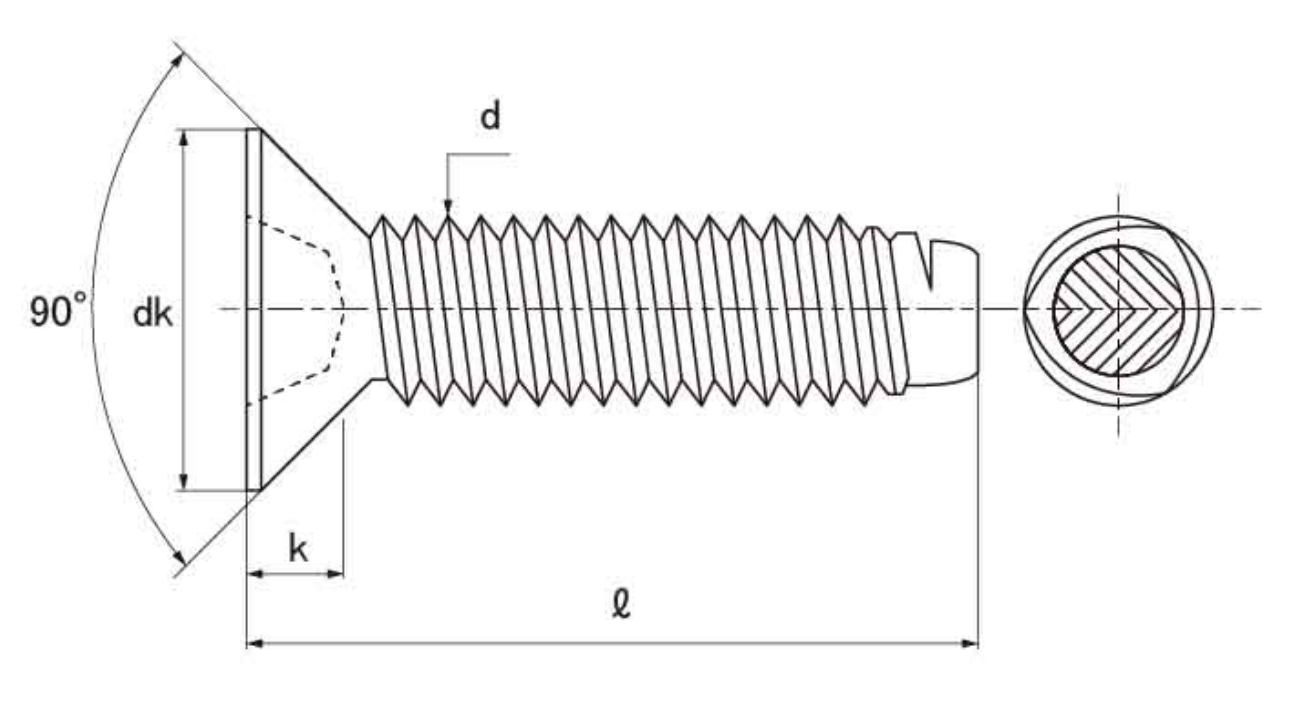

| Nominal thread size d | Pitch p | dk | k | d | Cross Recess Number | |||
|---|---|---|---|---|---|---|---|---|
| Max | Min | Max | Min | Max | Min | |||
| 2.5 | 0.45 | 5 | 4.6 | 1.45 | 1.25 | 2.5 | 2.4 | 1 |
| 2.6 | 0.45 | 5.2 | 4.8 | 1.5 | 1.3 | 2.6 | 2.5 | 1 |
| 3 | 0.5 | 6 | 5.5 | 1.75 | 1.45 | 3 | 2.9 | 2 |
| 4 | 0.7 | 8 | 7.5 | 2.3 | 2 | 4 | 3.85 | 2 |
| 5 | 0.8 | 10 | 9.4 | 2.8 | 2.5 | 5 | 4.85 | 2 |
